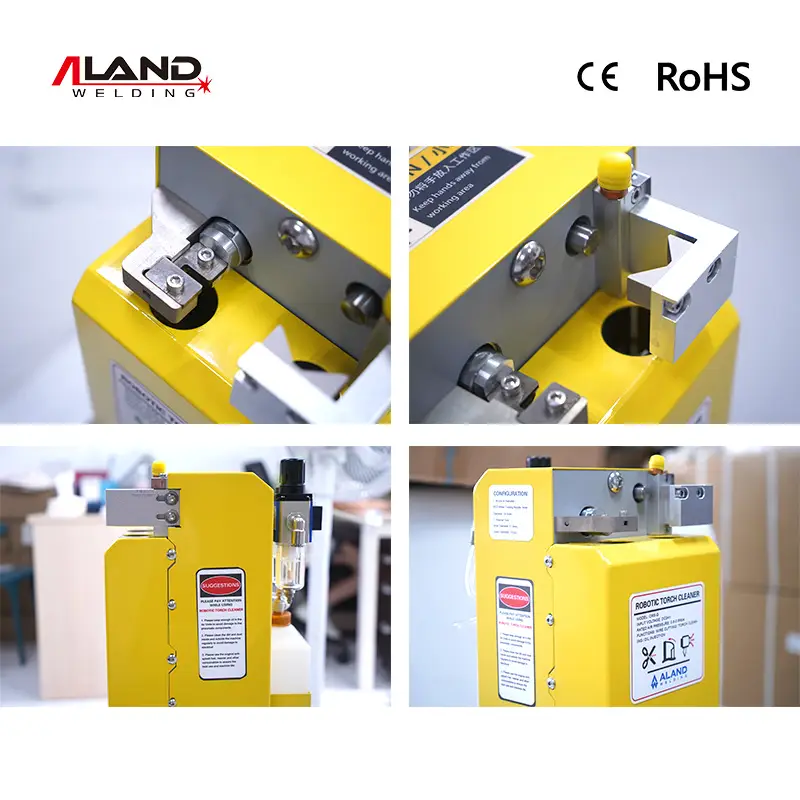

CRS-Q Economy Two Station Robotic Torch Cleaner For MIG Welding Robots Description:
The CRS-Q Two Station Robotic Torch Cleaner is an economical and efficient automatic torch cleaning system designed to improve robotic welding productivity and maintain consistent welding quality. Integrating wire cutting, torch cleaning, and anti-spatter spray functions into a compact two-station design, the CRS-Q robot torch cleaner provides a reliable solution for automated MIG welding applications.
Built with a durable and reinforced structure, the wire cutting device utilizes a powerful pneumatic drive system and high-strength cutting blades to deliver reliable cutting performance, even when processing thick and hard welding wires. This ensures smooth wire feeding and minimizes welding interruptions during automated production.
The torch cleaning device features an adjustable clamping mechanism capable of accommodating various welding nozzle sizes without replacing clamping blocks. Interchangeable reamers allow compatibility with different welding torch models, while the specially designed reamer structure effectively removes welding spatter, reducing tool jamming and ensuring thorough cleaning performance.
The integrated anti-spatter spray system applies anti-spatter liquid directly through the center axis of the nozzle, ensuring uniform coverage and eliminating spray dead zones. The adjustable spray volume improves protection efficiency while minimizing anti-spatter liquid consumption, resulting in lower operating costs and extended consumable life.
The CRS-Q automatic torch cleaner is widely used in robotic MIG welding systems, automotive production, steel fabrication, engineering machinery manufacturing, metal fabrication workshops, and industrial automation production lines requiring stable welding performance and reduced maintenance downtime.
CRS-Q Economy Two Station Robotic Torch Cleaner Specification:
| Model | CRS-Q | CRS-II |
| Functions | Wire Cutting, Splash Cleaning, Fuel Injection | |
| Number of Stations | 2 | 1 |
| Control Metho | External Control | Fully Automatic Inductive |
| Rated Pressure (MPa) | 0.6-0.8 | 0.6-0.8 |
| Power Supply | DC24V | 220V 50HZ |
| Rated Power | 5W | 5W |
| Operating Time (S) | 5 | 4.5 |
CRS-Q Economy Two Station Robotic Torch Cleaner Feature:
Wire Cutting Device
- Reliable structure and durable design ensure long service life.
- A reinforced pneumatic drive system equipped with high-strength blades provides powerful wire cutting capabilities, enabling it to handle most thick and hard wire cutting applications.
Torch Cleaning Device
- Easily adjusts the clamping diameter to clean welding torch nozzles of various sizes. No need to replace the clamping block when changing nozzles.
- Easily replace the reamers to suit different welding torch types.
- The unique-design reamer shape and structure effectively improve spatter cleaning, reducing tool sticking and incomplete cleaning.
Fuel Injection Spray Device
- Spraying from the nozzle’s centerline ensures uniform spraying, eliminating the problems of uneven spraying and dead spots.
- Adjustable fuel injection spray speed ensures reliable and cost-effective spatter prevention.
How to Choose a Robot Torch Cleaner:
| Model | CRS-II | CRS-Q |
| Functions | Wire Cutting, Splash Cleaning, Fuel Injection | |
| No. of Station | 1 | 2 |
| Control | Inductive | External Control |
| Power | 220V 50HZ | DC24V |
| Features | a. Actions of torch cleaning/ wire cutting/ fuel injection completed at one station, higher working efficiency; b. The automatic sensing nozzle starts working after reaching the working position. Unnecessary for connection and communication with the robot. c. complex structure and higher cost; | a. The wire cutting function and torch cleaning/fuel injection function are completed at two stations, respectively, resulting in slightly lower work efficiency, but the structure is simple, and the debugging flexibility is greater; b. All actions are controlled by the robot, and connection and communication with the robot are required; c. simple structure and lower cost; |
