235A AC DC Pulse TIG Welder IGBT Digital Inverter HF Lift TIG MMA Welding Machine with LCD Display Description:
The DIGI-TIG235ACDCPULS is a high-performance 235A AC DC Pulse TIG Welder designed for professional welders, precision fabrication, and industrial manufacturing. Powered by advanced IGBT digital inverter technology and a 32-bit MCU control system, this multifunction TIG/MMA welder delivers exceptional arc stability, precise current control, and superior welding performance on a wide range of metals.
Supporting AC TIG, DC TIG, Pulse TIG, Mix TIG, and MMA (Stick) Welding, the machine is ideal for welding aluminum, stainless steel, carbon steel, copper, titanium, magnesium alloys, and other conductive materials. It features both HF (High Frequency) Start and Lift TIG Start, ensuring clean arc ignition and minimizing tungsten contamination.
The color LCD provides an intuitive user interface for easy parameter adjustment. With synergic (auto) settings, tungsten electrode selection, EN/EP balance adjustment, waveform selection, Twin Pulse, and Pulse Frequency up to 999Hz, users can optimize welding parameters for thin sheets, precision components, and demanding industrial applications.
Designed for reliability and productivity, the digital inverter AC DC Aluminum TIG Welder is widely used in automotive repair, motorcycle manufacturing, aerospace, pressure vessels, food-grade stainless steel fabrication, aluminum fabrication, pipeline installation, maintenance workshops, and precision metal fabrication.

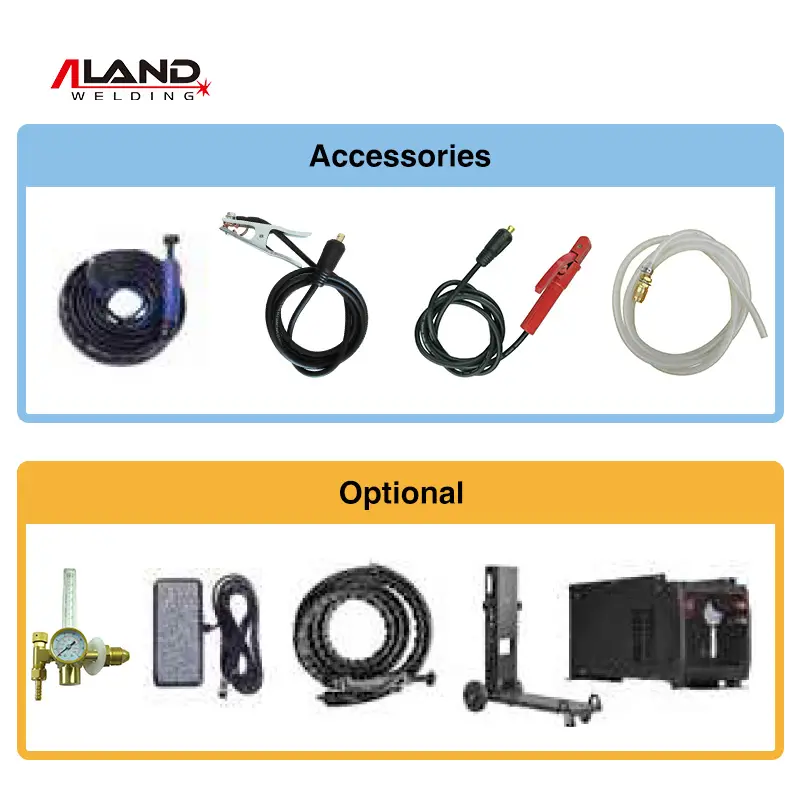

Accessories Includes
Tig torch 4m
Earth clamp cable with 300A/500A earth clamp
Welding cable with 300A/500A electrode holder
Gas hose 2m
Optional
Amps control the TIG torch
Foot pedal
Regulator
Water cooler W200
Trolley MC205
235A AC DC Pulse TIG Welder IGBT Digital Inverter HF Lift TIG MMA Welding Machine Specification:
| Model | DIGI TIG235ACDCPULS | DIGI TIG325ACDCPULS |
| Power Supply Voltage | 1*230V 50/60Hz | 3*400V 50/60Hz |
| Rate Capacity (KVA) | 6.2 | 10 |
| Rate Input Current(A) | 27 | 14.5 |
| No Load Voltage | 80 | 80 |
| Output current Range | TIG:2(AC:3A)-235A MMA:10-200A | TIG:3(AC:5A)-400A MMA:10-315A |
| Duty Cycle | 60% | 35% |
| Weight | 26kg | 30kg |
| L*W*H (mm) | 560*240*460 | 560*240*460 |
235A TIG Welding Machine Features:
IGBT Digital inverter AC DC Pulse TIG and MMA
Lift and HF(or HV) for TIG
32-bit MCU inside
Color LCD screen display
Foot pedal and finger amps remote control
2T/4T function
TIG Cool weld
Pulse frequency up to 999Hz
TIG Spot weld
TIG fast tack
Mix TIG weld
AC frequency can be up to 400Hz
AC amps can go down to 3A, and DC amps can go down to 2A.
Easily get a high-quality weld seam
PFC(Option)
Syngeric(Auto) setting.
Tungsten selection
En/Ep selection
Twin pulse and waveform selection
If you are interested in our products or plan to import the 235A Digital AC DC TIG Welding Machine and other construction welding products, please feel free to contact us. Looking forward to long-term cooperation with you.
