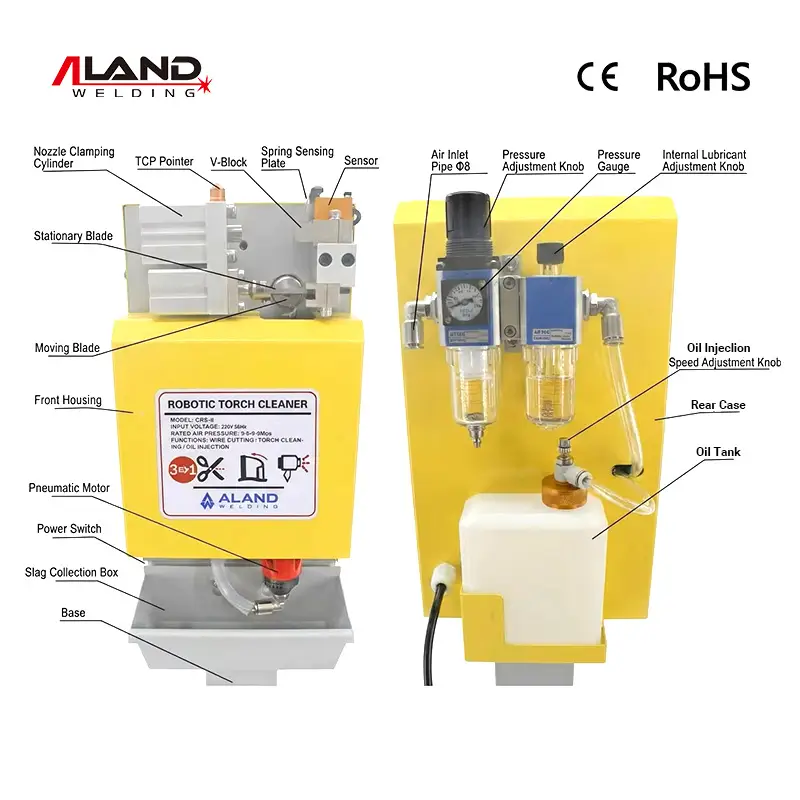

CRS-II One-Stop Robotic Torch Cleaner Automatic Wire Cutting Reaming And Anti-Spatter Spraying System Description:
The CRS-II One-Stop Robotic Torch Cleaner is an advanced automatic robotic torch maintenance system designed to improve welding efficiency, reduce downtime, and optimize robotic welding performance. Integrating wire cutting, spatter cleaning, and anti-spatter agent spraying into a single station, the CRS-II robotic torch cleaner significantly shortens torch maintenance cycles and enhances overall productivity in automated welding applications.
Unlike conventional two-station or three-station systems, the CRS-II torch cleaning station performs all cleaning operations in one location, eliminating unnecessary robot movement and reducing cleaning time. This innovative one-stop design simplifies equipment setup, requiring only a single nozzle position adjustment, which greatly reduces installation and calibration complexity.
The integrated anti-spatter spray system injects anti-spatter liquid directly through the center axis of the welding nozzle, ensuring uniform coverage and superior protection. Compared with traditional side-spraying systems, the CRS-II robotic torch cleaning system eliminates uneven coating and dead spray zones, resulting in better welding quality and longer consumable life.
For enhanced operational safety, the wire cutter and reamer cleaning unit are fully enclosed within the machine structure. The system is controlled by an advanced PLC programmable control system, allowing users to flexibly adjust process timing without modifying hardware circuits. In addition, the fully inductive automatic feedback control technology eliminates communication requirements between the welding robot and the cleaning station, simplifying system integration and reducing installation costs.
The CRS-II robotic torch cleaning station is widely used in robotic MIG welding, automotive manufacturing, steel structure fabrication, industrial automation, heavy equipment manufacturing, and high-volume production lines requiring consistent welding quality and maximum operational efficiency.
CRS-II One-Stop Robotic Torch Cleaner Specification:
| Model | CRS-Q | CRS-II |
| Functions | Wire Cutting, Splash Cleaning, Fuel Injection | |
| Number of Stations | 2 | 1 |
| Control Metho | External Control | Fully Automatic Inductive |
| Rated Pressure (MPa) | 0.6-0.8 | 0.6-0.8 |
| Power Supply | DC24V | 220V 50HZ |
| Rated Power | 5W | 5W |
| Operating Time (S) | 5 | 4.5 |
CRS-II One-Stop Robot Torch Cleaner Feature:
CRS-II One-stop Robotic Torch Cleaning Station is a revolutionary solution for two-station or three-station torch cleaning stations. It has the following features:
- CRS-II completes all three operations of wire cutting, splash cleaning, and anti-splash agent spraying at the same station at one time. This effectively reduces the torch cleaning time and improves the overall efficiency of robotic torch system.
- The one-stop design of CRS-II simplifies the positional relationship between the torch cleaning station and the welding torch. Therefore, only one adjustment of the nozzle position is needed, which substantially reduces the complexity of equipment tuning.
- The liquid injection device in CRS-II sprays the anti-splash agent along the central axis of the nozzle to ensure the high quality of fuel injection. Compared with the traditional two-point side spraying method, CRS-II can overcome issues of uneven fuel injection and spraying dead corners.
- CRS-II encapsulates the wire-cutting device and reamer device, which improves the safety of use.
- CRS-II applied a programmable logic controller (PLC) to control the electrical system. Therefore, customers can adjust the time of each process flexibly and effortlessly without changing the hardware circuit.
- CRS-II adopts fully inductive automatic feedback control technology, eliminating the communication and connection between the torch robot and the torch cleaner. This feature significantly reduces the overall complexity of the system. Also, it makes the adjustment of equipment much more efficient.
How to Choose a Robot Torch Cleaner:
| Model | CRS-II | CRS-Q |
| Functions | Wire Cutting, Splash Cleaning, Fuel Injection | |
| No. of Station | 1 | 2 |
| Control | Inductive | External Control |
| Power | 220V 50HZ | DC24V |
| Features | a. Actions of torch cleaning/ wire cutting/ fuel injection completed at one station, higher working efficiency; b. The automatic sensing nozzle starts working after reaching the working position. Unnecessary for connection and communication with the robot. c. complex structure and higher cost; | a. The wire cutting function and torch cleaning/fuel injection function are completed at two stations, respectively, resulting in slightly lower work efficiency, but the structure is simple, and the debugging flexibility is greater; b. All actions are controlled by the robot, and connection and communication with the robot are required; c. simple structure and lower cost; |
