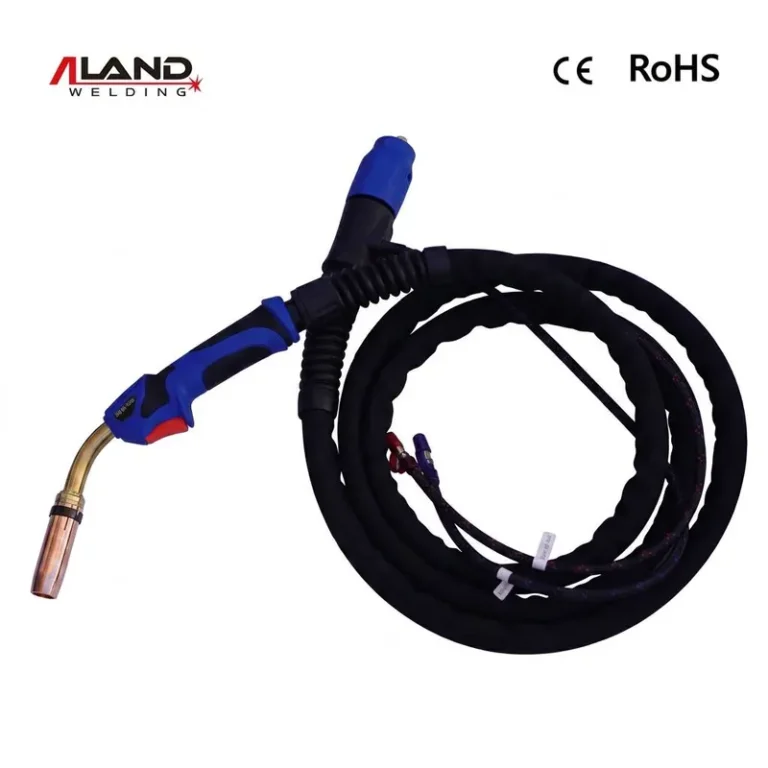

400A 500A Water Cooled MIG Welding Torch Euro Connector MIG Gun For Heavy Duty Fabrication Description:

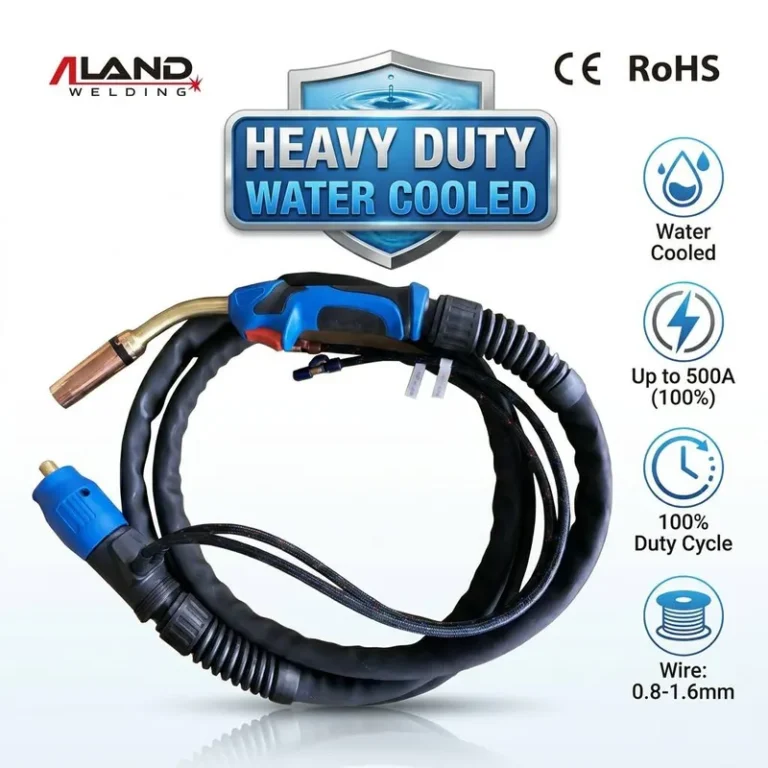

400A 500A Water Cooled MIG Welding Torch series, including the 400 and 500 models, is engineered for extreme industrial environments requiring a 100% duty cycle at high current outputs. The 500A model delivers a robust 500Amp (CO2) or 400Amp (MIX), while the 400A model provides a consistent 400Amp (CO2) or 350Amp (MIX), ensuring zero downtime during continuous heavy-duty welding. This professional water-cooled cooling system features a high-efficiency internal radiator and hose design that maintains optimal thermal management of the contact tip and nozzle, providing maximum arc stability and high-purity shielding for 0.8mm to 1.6mm industrial welding wires.

The 401 MIG torch is rated at 400A with CO₂ shielding gas and 350A with mixed gas at a 100% duty cycle, supporting Φ0.8–1.2mm welding wire. The 501 MIG torch delivers up to 500A with CO₂ and 450A with mixed gas at a 100% duty cycle, supporting Φ1.0–1.6mm welding wire for heavier welding applications.

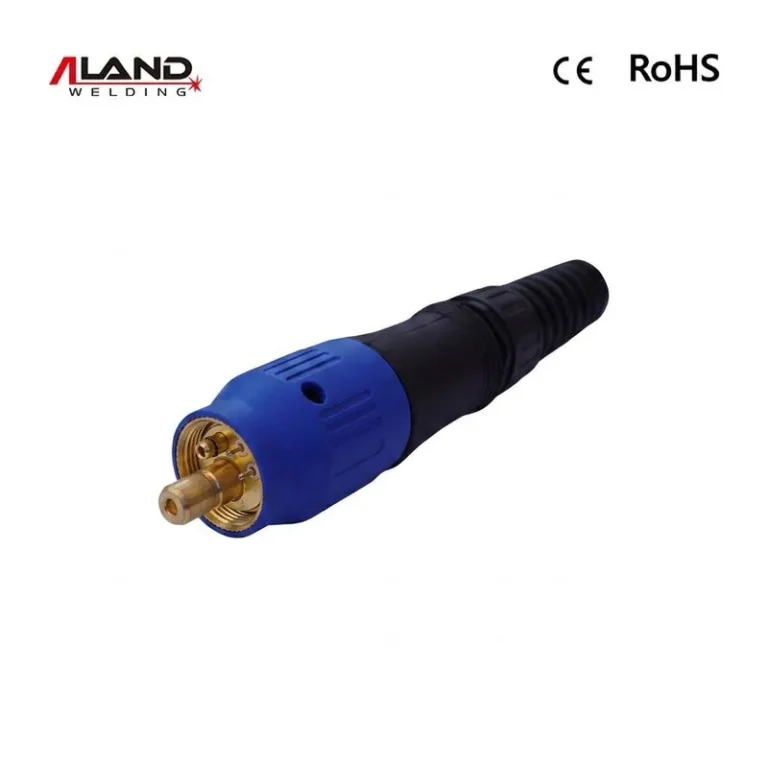

Equipped with a standard Euro connector, the 400/500 MIG welding torches are compatible with most MIG/MAG welding machines and support a complete range of 400 500 consumables, including contact tips, gas nozzles, tip holders, gas diffusers, torch necks, and liners.

400A 500A Water Cooled MIG Welding Torch Specification:

Parameter Item	MIG Torch 400	MIG Torch 500
Cooling Method	Water Cooled	Water Cooled
Duty Cycle (100%)	400Amp CO₂, 350Amp MIX	500Amp CO₂, 450Amp MIX
Wire Diameter	Φ0.8-1.2mm	Φ1.0-1.6mm

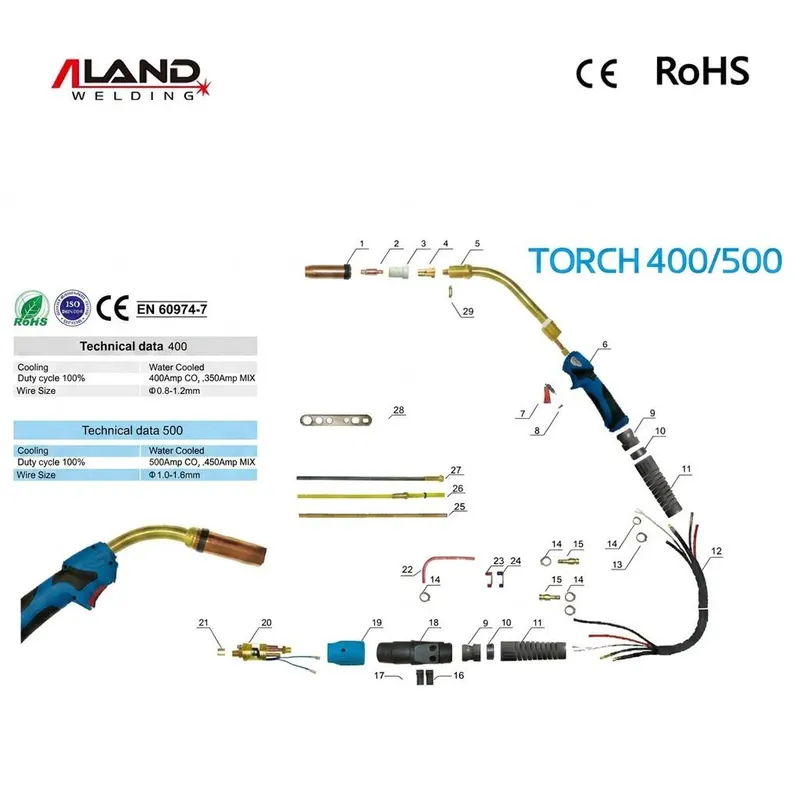

400A 500A Water Cooled MIG Welding Torch Spare Parts List:

Position	Order No.	Ref. No.	Description
1	A145.0085	145.0085	Gas nozzle Φ16mm
2	A140.0442	140.0442	Contact tip Φ1.2mm E-CU/M8X30
3	A030.0190	030.0190	White ceramic gas diffuser 401D-501D
4	A142.0022	142.0022	Contact tip holder M8X25mm
5.1	A034.0001	034.0001	Torch head 501D
5.2	A033.0001	033.0001	Torch head 401D
6	ACV0890-01	–	MIG handle Blue/Grip
7	A185.0031	185.0031	Trigger
8	AFT0874	–	Screw M3X10
9	AHJ0021	–	Joint for MIG handle
10-1	AHJ0852	–	Housing ring/big/inside
10-2	AHJ0855	–	Housing for plasma back box/big
11	AFT0822	–	Spring for cable support
12	ACD0067	–	Cable assembly 3m 401D-501D
13	AFT0722	–	Clamp Φ9.0
14	AFT0730	–	Clamp Φ8.0

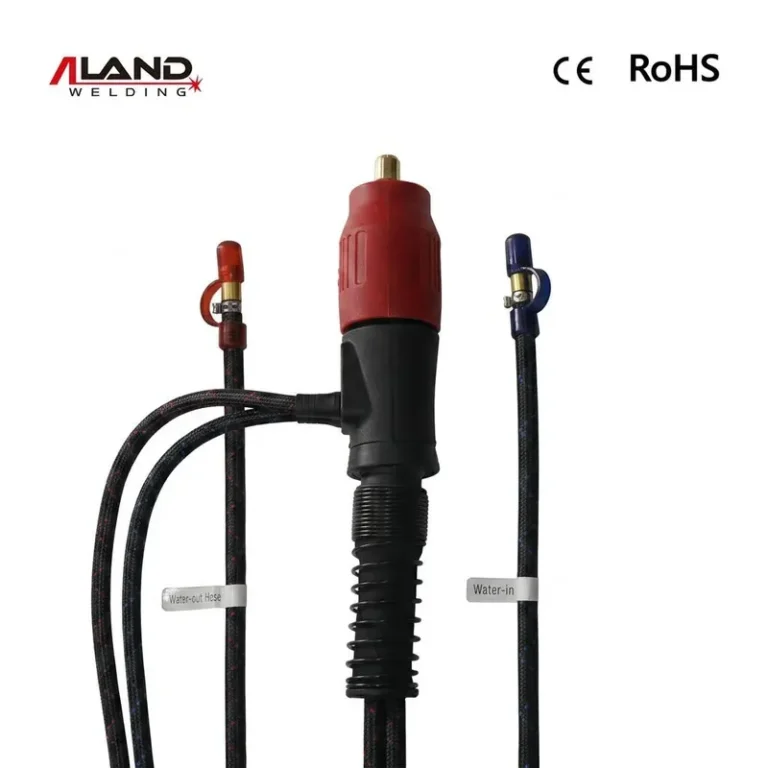

15	A190.0099	190.0099	Quick connector water Φ6/APH
16	AHJ0764	–	Hose support for water-cooled rear box
17	AFTO063	–	Screw M4X6
18	AHJ0763	–	Back box for water-cooled
19	AHJ0072	–	Adaptor nut/Blue

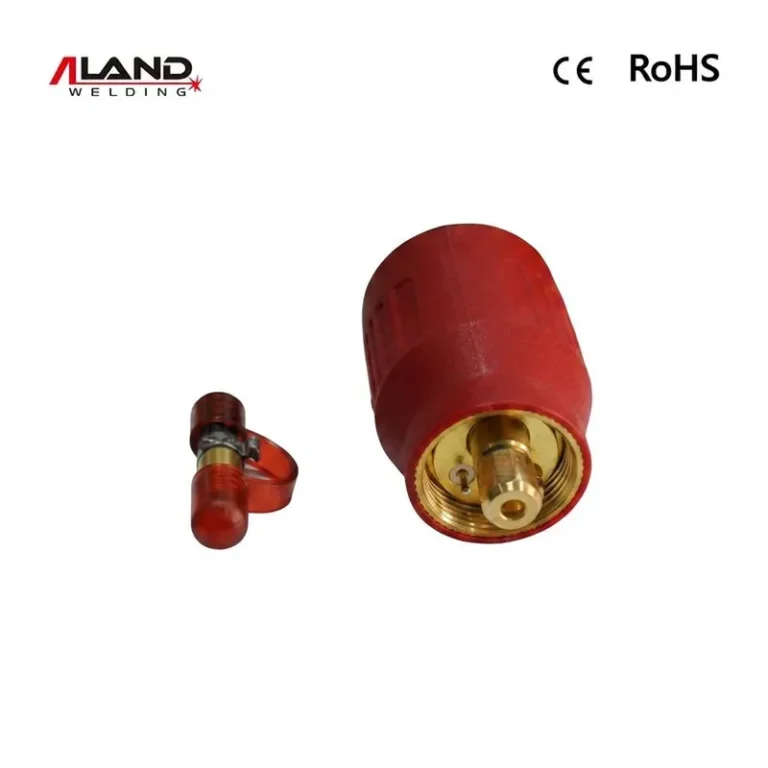

20	A501.2156	501.2156	Euro central adaptor body/water cooling
21	A501.0082	501.0082	Liner nut
22	AKH0605	–	Output water tube M5X8mm 0.8m red, EPDM
23	AHJ0306	–	Plastic support for water cooling connector /Red
24	AHJ0308	–	Plastic support for water cooling connector /Blue
25	AIC0226	–	Brass terminal Φ3.0X45mm 0.35m
26	A126.0039	126.0039	Teflon liner Φ3.0X4.5mm 3m Yellow
27	A122.0056	122.0056	Steel liner Φ1.2-1.6mm 3m
28	ACG6000	–	Spanner for MIG torches
29	A030.0019	030.0019	Insulator 401D-501D

Complete Torch

Model Code	Full Specification
MIG400-03	MIG 401D torch 3m euro adaptor/spring pins
MIG400-04	MIG 401D torch 4m euro adaptor/spring pins
MIG400-05	MIG 401D torch 5m euro adaptor/spring pins
MIG500-03	MIG 501D torch 3m euro adaptor/spring pins
MIG500-04	MIG 501D torch 4m euro adaptor/spring pins
MIG500-05	MIG 501D torch 5m euro adaptor/spring pins
