AWX50 Series 500A Small Nozzle 2 Circuit Robotic Welding Torch For Tight Space Welding

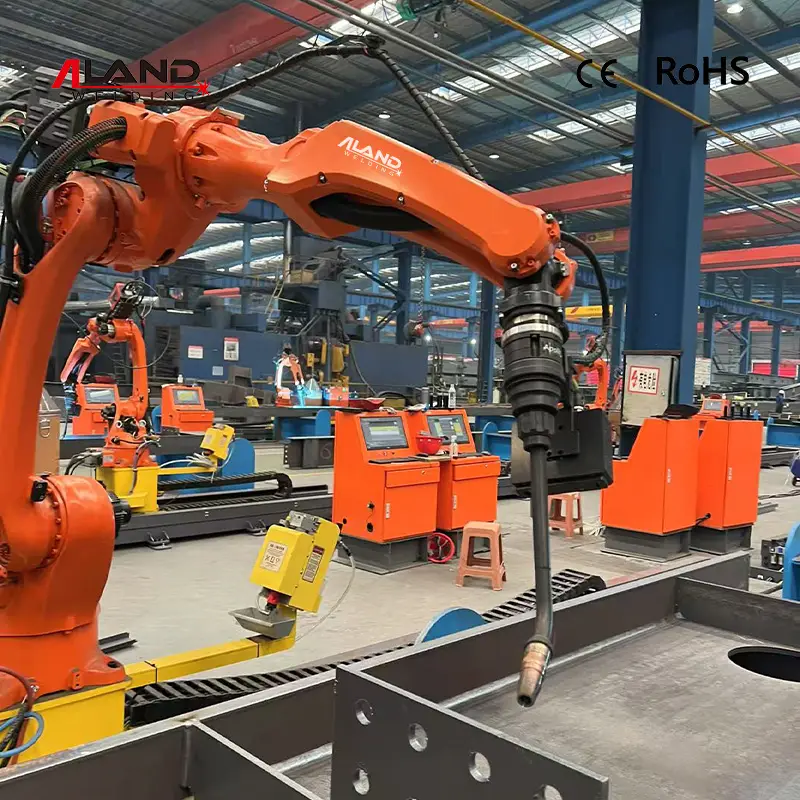

AWX50 Series 500A Small Nozzle 2 Circuit Robotic Welding Torch For Tight Space Welding Description:

The AWX50 Series 500A Small Nozzle 2 Circuit Robotic Welding Torch is a specialized robotic welding torch designed for high-precision welding in narrow and confined spaces. Featuring a small nozzle compact design, the AWX50 robotic welding torch significantly reduces nozzle length compared to standard torches, enabling welding operations in extremely tight spaces as narrow as 70–75mm. This makes it ideal for complex welding positions where traditional torches cannot operate efficiently.

Equipped with an advanced 2-circuit water cooling system, the torch ensures efficient heat dissipation even under high-current pulsed welding conditions. It can operate continuously under loads up to 420A high current pulse welding, providing excellent thermal stability and long service life for consumables and torch components.

The integrated anti-collision protection system offers high sensitivity, precise reset performance, and reliable safety protection for robotic welding systems, effectively reducing equipment damage and downtime.

The torch neck is designed for quick disassembly and easy maintenance, improving production efficiency and reducing service time. Optional features such as wire clamping function and nozzle positioning system further enhance operational flexibility for different welding applications.

High-quality cable assemblies and protective sheaths ensure long-term resistance to fatigue bending, maintaining stable performance in continuous industrial use. Multiple configurations of neck length, curvature, and nozzle design are available, with full customization options to meet specific robotic welding requirements.

AWX50 Series 500A Water Cooling Small Nozzle 2 Circuit Robotic Welding Torch Specification:

Model	AWX50N / AWX50Y
Rated Current / Heavy Duty	Standard	Heavy Duty
	CO2 500A/100%	CO2 550A/100%
	Pulse MAG 320A/100%	Pulse MAG 420A/100%
Minimum welding space width (When the neck bending angle is 45º)	70mm	75mm
Cooling Method	2-circuit water cooling
Wire diameter	0.8-1.6mm
Reset the accuracy of the anti-collision device	±0.03mm

AWX50 Series Small Nozzle 2-Circuit Water Cooling Robotic Welding Torch Feature:

• Compatible: ABB, KUKA, YASKAWA, FANUC, UNIVERSAL ROBOTS, Kawasaki
• The nozzle length is significantly reduced compared to standard welding torches, and can be welding in small spaces with a width of 70- 75 mm;
• High reliability and durability;
• The efficient cooling system ensures an extremely high load duration and can be used for a long time under high Current pulses of 420A;
• Integrated anti-collision protector, high reset accuracy, sensitivity, and reliability;
• The torch neck can be easily disassembled, quickly replaced, and maintained;
• Function of wire clamping function or the nozzle positioning can be added;
• High-quality sheaths and tubes, resistant to long-term fatigue bending without damage;
• Multiple options are available for neck length, curvature, and nozzle style, and customization can be made as requested;

500A Water Cooling Robotic Welding Torch Parts:

Serial No.	Description		Order No.	Remarks
1	Torch Assembly: (Torch+anti-collision+flange +holder+cables)		AWX50N	Without torch holder
			AWX50Y	With torch holder
2	Neck 45°	Through-arm	011AWX50N/45/L	L: torch length None: short type 100: extend 100mm 200: extend 200mm ……
		External	011AWX50Y/45/L
	Customized length and angle		011AWX50N(orY ）/A/L	A: angle L: torch length

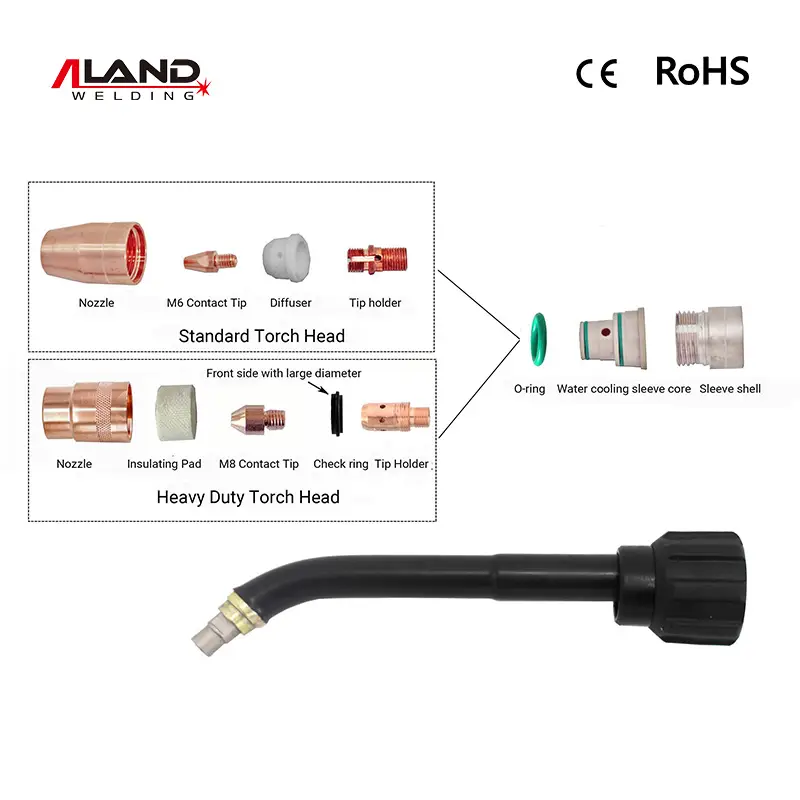

3	Standard type	Nozzle 40 / Dia. 16	0400118318
		Contact Tip M6*21	02102XX05	XX: wire diameter
		Diffuser	050011401
		Tip Holder 12*22.5	030011203
4	Heavy-duty type	Nozzle Length 46 / Dia. 18.5	0400118569
		Insulating bush	0710402113
		Contact Tip M8*21	02202XX1	XX: wire diameter
		Tip Holder 14*24.5	033021412
5	Check ring		070050012
6	O-ring (front end of insulation sleeve)		08101013
7	insulation sleeve core		064053502
8	insulation sleeve shell		064053501
9	Insulation sleeve combination(shell + core)		064053500
10	Torch cables		AWX50N/abcd	ab: fill cable length, c: connector type of wire feeder, d: wire clamping function
