2000W Portable Handheld Fiber Laser Welding Machine 4 In 1 Metal Laser Welder for Sale Description:
The Air Cooling 2000W Portable Handheld Fiber Laser Welding Machine is a high-performance metal laser welding machine designed for professional industrial fabrication and precision metal processing applications. This advanced 4 In 1 handheld metal laser welding machine integrates laser welding, laser cleaning, laser cutting, and laser derusting into one compact and efficient system, helping manufacturers improve productivity while reducing labor and maintenance costs.
Equipped with powerful fiber laser technology, the handheld laser welding machine delivers stable laser output, deep weld penetration, smooth weld seams, and minimal thermal deformation. The machine is suitable for processing stainless steel, carbon steel, galvanized steel, aluminum, and other metal materials widely used in modern manufacturing industries.
This portable laser welding equipment features user-friendly operation, high welding speed, low consumable costs, and excellent welding precision, making it an ideal solution for sheet metal fabrication, hardware manufacturing, automotive repair, kitchenware production, metal furniture fabrication, advertising signage, and industrial maintenance applications.
As a modern fiber laser welder, the machine provides cleaner welds and higher efficiency compared with traditional TIG and MIG welding equipment. Its portable structure and multifunction design make it highly suitable for factory workshops, mobile welding projects, and industrial production lines.
Handheld Semi-Auto Fiber Laser Welding Machine Specification:
| Model | FR-LA-25E | FR-LA-30E | FR-LA-40E |
| Power Supply | 1*220V, 50/60Hz | 1*220V, 50/60Hz | 1*220V, 50/60Hz |
| Rate Input Capacity (KVA) | 3.5 | 4 | 4.5 |
| Rate Input Current(A) | 15 | 17 | 20 |
| Laser Power | 1200W | 1500W | 2000W |
| Output power stability | 2% | 2% | 2% |
| Welding Depth of Fusion | 0.5-3.5mm | 0.5-4.0mm | 0.5-5.0mm |
| Laser spot Range | 0-8mm | 0-8mm | 0-8mm |
| Welding Speed | 0-120mm/s | 0-120mm/s | 0-120mm/s |
| Dia. of Wire | 0.8, 1.0 | 0.8, 1.0,1.2 | 0.8, 1.0,1.2,1.6 |
| Weight | 48kg | 48kg | 55kg |
| L*W*H(mm) | 600*250*570 | 600*250*570 | 650*310*570 |
Air Cooling 2000W Portable Handheld Fiber Laser Welding Machine Feature:
- High-quality semiconductor laser and stable cooling system

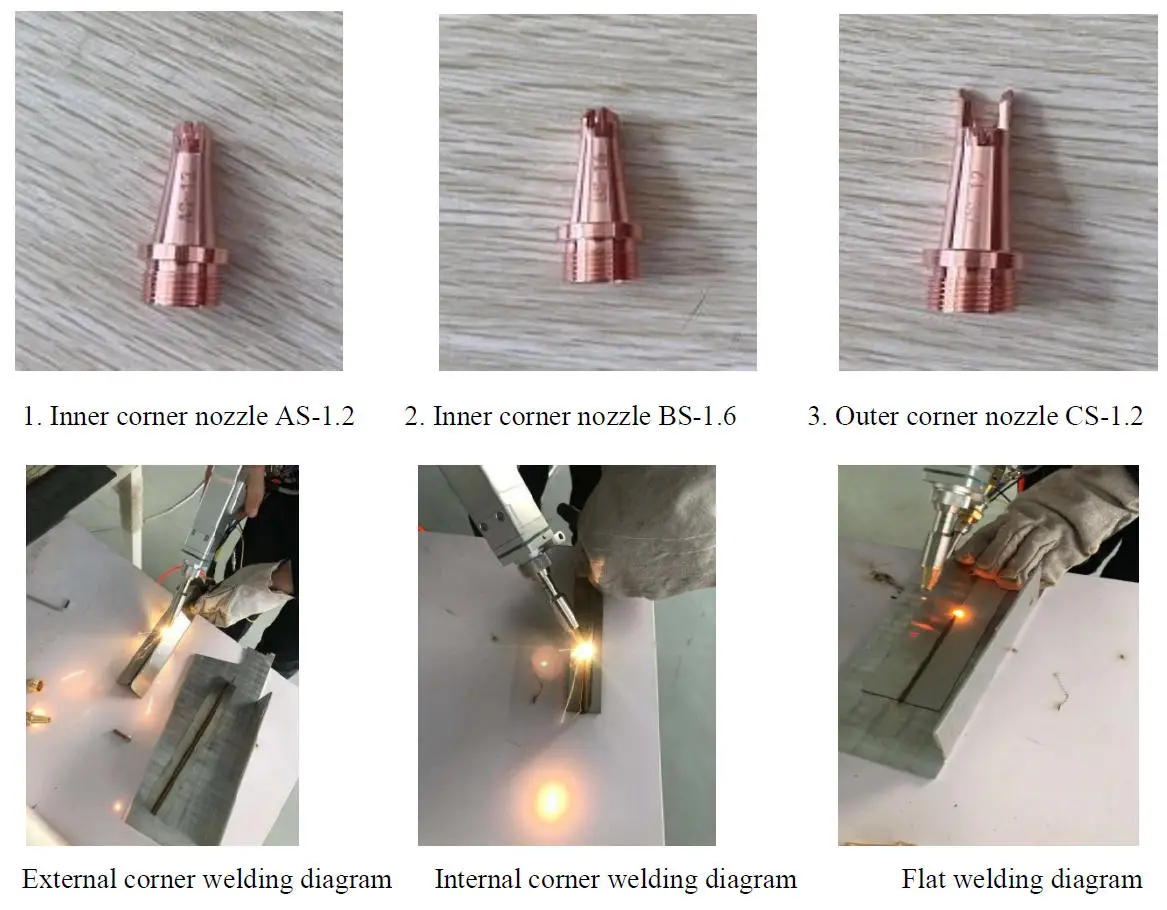

- The torch has a special nozzle suitable for welding at different angles and positions on the workpiece
- The operation is easy and gets a high welding speed and high quality
- The efficiency can be up to 2-10 times that of TIG welding and can economize on manpower.
- General staff can use it, and no need for special training.
- You can fit a wire by a separate wire feeder system.
- Light hand torch and with 5m original Fiber
- Long life Accessories and save energy, lower use cost.
- Special safety protection function for welding workers.
- Laser model: continue or modulation
- Laser wavelength: 1080nm
- Cooling system: fan cooling
- Welding materials: steel/stainless steel/aluminum/copper.
- Multi-functions: welding, cutting, derusting, and weld seam cleaning.
- Smaller size and light weight, easy to move.
- Remote Style LCD control Panel.

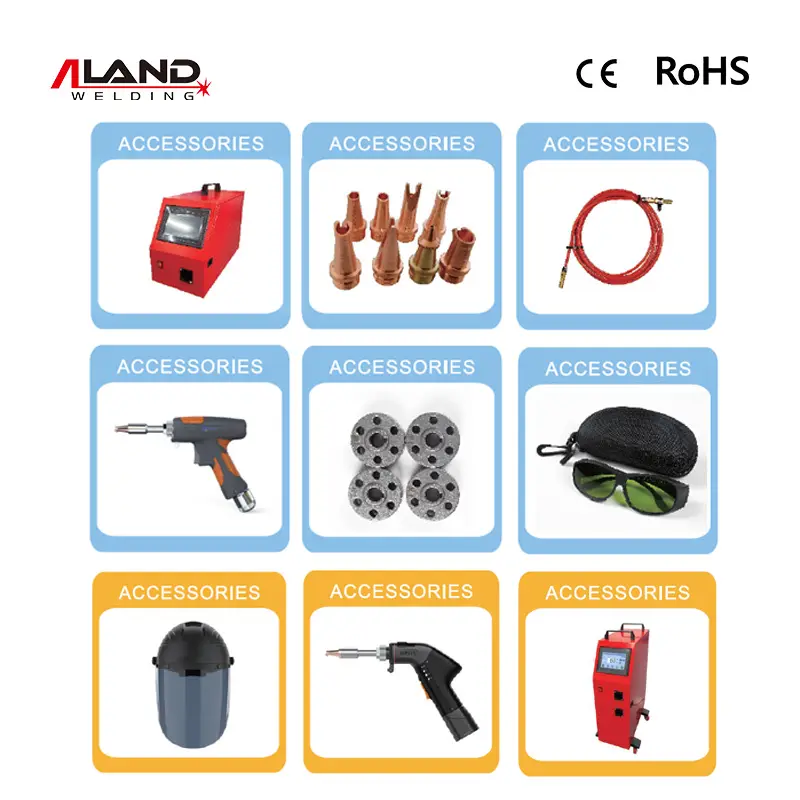

Standard Accessories
Wire feeder
Torch 5m
Wire feeding hose
Protection Goggle
welding and cutting, cleaning nozzles
wire feed rollers
Optional Accessories
Torch and system: SUP21S, SUP23T
Twin-wire feeder system
