AWZ50 Series Water Cooling 2 Circuit Narrow Gap Robotic Welding Torch 500A / 250A

AWZ50 Series Water Cooling 2 Circuit Narrow Gap Robotic Welding Torch 500A / 250A Description:

The AWZ50 Series 2-Circuit 500A / 250A Water-Cooling Narrow Gap Robotic Welding Torch is a specialized robotic welding torch designed for precision welding in narrow and confined spaces. Compatible with leading industrial robot brands such as ABB, KUKA, YASKAWA, FANUC, UNIVERSAL ROBOTS, and Kawasaki, this advanced water-cooled robotic welding torch delivers exceptional performance, high reliability, and stable welding quality in automated production environments.

Featuring a specially designed curved conductive nozzle, the AWZ50 robotic welding torch can be easily inserted into narrow gaps and restricted welding positions, making it ideal for complex structures where standard torches cannot operate efficiently. This design significantly improves accessibility and welding flexibility in tight space applications.

The advanced 2-circuit water cooling system ensures efficient heat dissipation, supporting a maximum welding current of up to 500A, while also maintaining stable performance at lower load conditions such as 250A operation. This dual-range capability makes the torch highly adaptable for different welding processes and material thicknesses.

The torch neck is designed for quick disassembly and easy maintenance, improving operational efficiency and reducing service time. Optional wire clamp function can be added to enhance welding stability and control during production.

The AWZ50 narrow-gap robotic MIG/MAG welding torch is widely used in automotive manufacturing, steel structure fabrication, shipbuilding, construction machinery, pressure vessel production, and advanced robotic welding automation systems.

AWZ50 Series Water Cooling 2 Circuit Narrow Gap Robotic Welding Torch Specification:

Model	AWZ50N/Y	AW20N/Y
Duty Cycle	CO2 550A/100%	CO2 250A/100%
	MAG 500A/100%	MAG 200A/100%
Cooling Method	2-circuit water cooling	1-circuit water cooling
Min. Welding space width	35mm	25mm
Wire diameter	0.8-1.6mm	0.8-1.2mm
Reset the accuracy of the anti-collision device	±0.03mm	±0.03mm

AWZ50 robotic welding torch Feature:

• Compatible: ABB, KUKA, YASKAWA, FANUC, UNIVERSAL ROBOTS, Kawasaki
• High reliability and durability
• Applied with a curved conductive nozzle, the torch head can be inserted into a narrow space for welding
• Efficient water cooling, with a maximum welding Current up to 500A
• Integrated anti-collision protector, high reset accuracy, sensitivity, and reliability
• The torch neck can be easily disassembled, changed over, and maintained.
• The wire clamp function can be added
• High-quality protector and tubes, long endurance of fatigue bending
• The great versatility of the length, bending angle of the torch neck, and nozzle style, these can be customized.

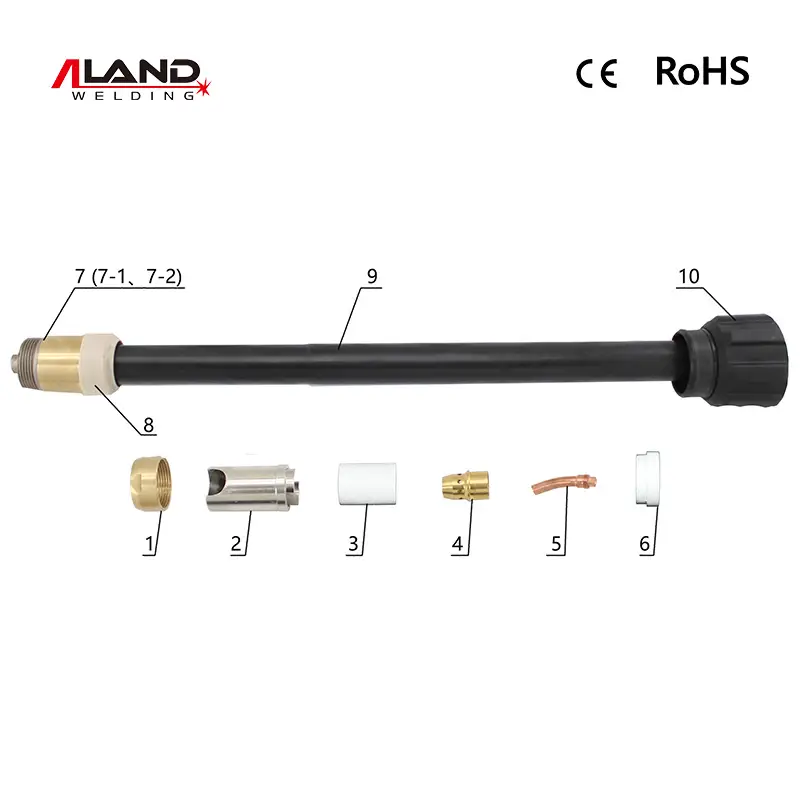

Narrow Gap Water Cooling Robotic Welding Torch Parts:

Serial No.	Description		Order No.		Remarks
			Higher Current	Smaller Current
1	Torch Assembly: (Torch+anti-collision+flange +holder+cables)		AWZ50	AWZ20	External torch with holder, Through-arm torch without holder
2	Neck 0°	Through-arm	011AWZ50N/0/L	011AWZ20N/0/L	L: torch length None: short type 100: extend 100mm 200: extend 200mm ……
		External	010AWZ50Y/0/L	010AWZ20Y/0/L
	Customized length and angle		011AWZ50/A/L	011AWZ20/A/L	A: angle L: torch length
3	Nut		03503000
4	Narrow gap nozzle		04404000
5	Insulating sleeve		07104000
6	Tip Holder		03003000
7	AW/35 Contact Tip		0250235XX		XX: wire diameter
8	Check ring		07301000
9	Insulation sleeve		064053501
10	Insulation sleeve shell		060051001
11	Insulation sleeve core		064052002
12	Pulling cap		074060000
13	Neck locker female		90502000	90502000
