275A 315A Portable IGBT Inverter MIG MMA Welder LCD Display Industrial Welding Machine Description:

The MIG315LCD portable IGBT inverter MIG MMA welder is designed for industrial and workshop welding applications. With 275A and 315A output options, this industrial MIG welding machine delivers stable arc performance and reliable welding quality for stainless steel, carbon steel, and other metal materials.

Equipped with an intuitive LCD display, the machine allows easy parameter adjustment and real-time monitoring, improving welding precision and efficiency. The multi-process MIG MMA welder supports both MIG welding and manual arc welding, making it suitable for fabrication, repair, and maintenance work.

With compact design and durable construction, the MIG315LCD welding machine is ideal for portable use while maintaining strong industrial performance.

IGBT Inverter MIG MMA Welder Specification:

Model	MIG230LCD	MIG275LCD	MIG315LCD
Power Supply Voltage	1*230V 50/60Hz	3*400V 50/60Hz	3*400V 50/60Hz
Rate Input Capacity (A)	39.5	16.5	18.5
Rated Input Current (KVA)	7.4	11	13
No Load Voltage	70 V	70 V	70 V
Output Current Range	TIG: 30-230A MMA: 10-180A	TIG: 30-275A MMA: 10-220A	TIG: 30-315A MMA: 10-250A
Rated Duty Cycle	50%	50%	50%
Net Weight	20 kgs	25kgs	38 kgs
Machine Dimensions L*W*H(mm)	600*270*480mm	600*270*480mm	850*270*740mm

MIG315LCD IGBT Inverter MIG MMA Welder Machine Feature:

1. Digital Control IGBT inverter DC MMA and Mig
2. LCD Screen display
3. Hot arc start and arc force, Anti-stick for MMA E6010 weld well.
4. 32-bit MCU inside
5. Spool gun 7-pin connector
6. 2T/4T function
7. Synergic (Auto)setting

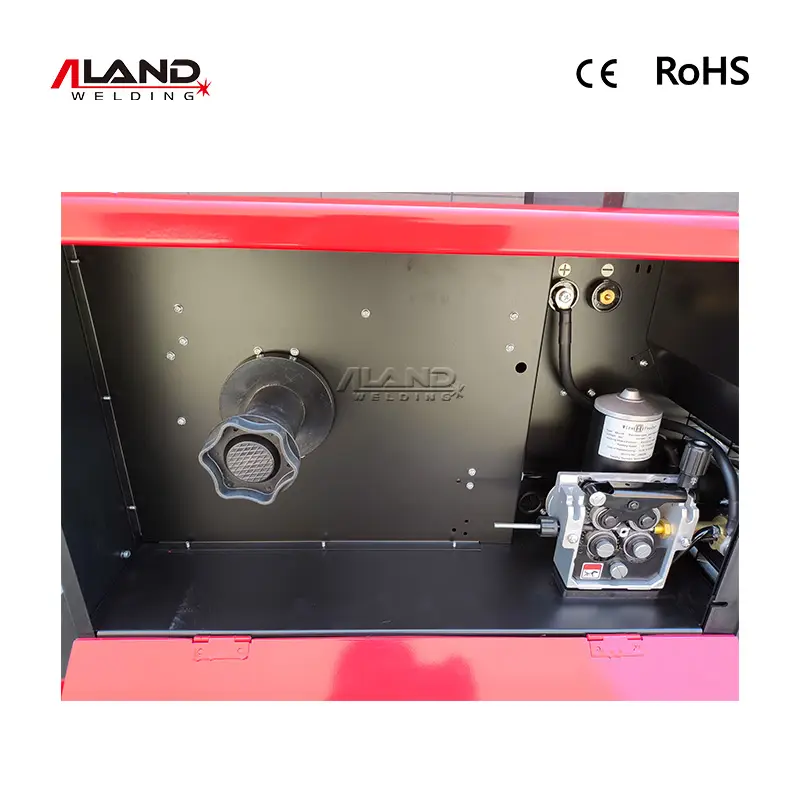

8. 200/300mm wire spool
9. 4 rollers wire feeder
10. Spot and stitch function for
11. Mig Heavy Duty Cycle

275A 315A Portable MIG MMA Welding Machine Advantages:

1. Advanced IGBT Inverter: A high-quality IGBT module ensures stable arc and high efficiency.
2. Smart Arc Control: Adjustable arc force for better control and less spatter.
3. Synergic MIG (EASY Mode): Auto-sets parameters by material and thickness for optimized welds.
4. High Duty Cycle: 100%@250A, 50%@315A for heavy-duty industrial use.

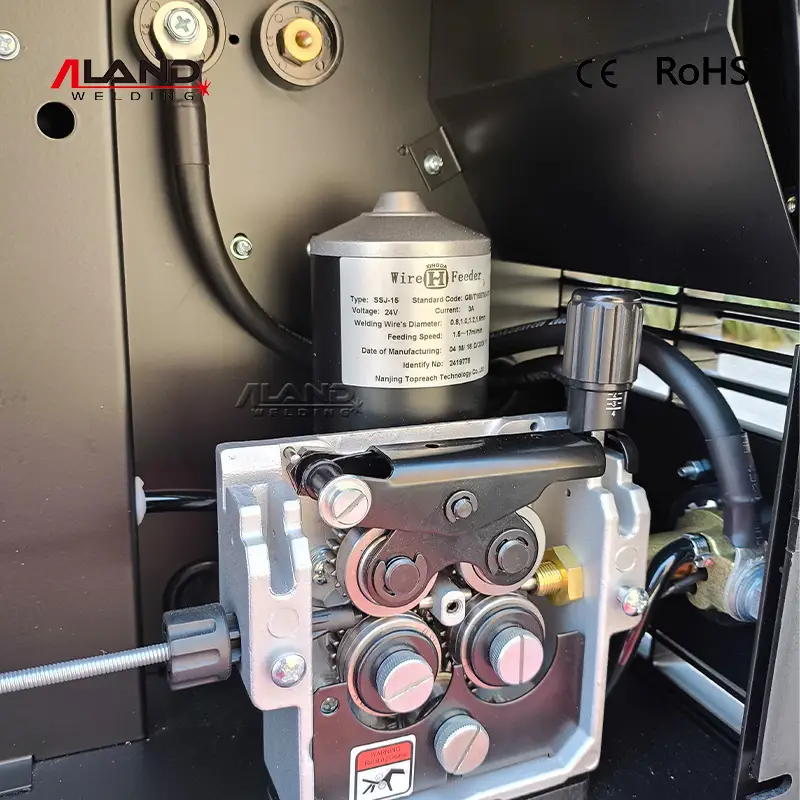

5. Stable Wire Feed: Low start speed & smooth wire feeding, max 15m/min.
6. Multi-Protection: Overheat, over-voltage, and over-current protection.
7. Gas Control System: Pre-gas & post-gas flow for better welding formation.
8. 2T/4T Trigger: Flexible operation modes for long-time welding.

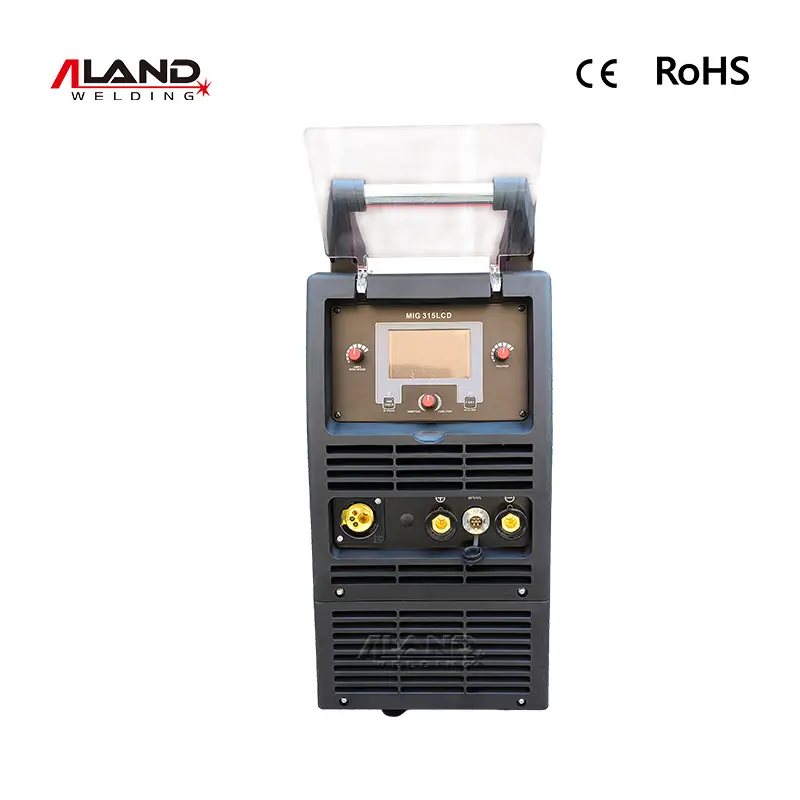

9. LCD Digital Display: Clear data reading, easy parameter adjustment.
10. Parameter Storage: 20 channels for storing and recalling welding programs.
11. Burn Back Function: Prevents wire sticking and ensures a clean arc stop.

About ALAND WELDING:

Founded in 2012, BEIJING ALAND WELDING is a professional manufacturer and global supplier of advanced welding equipment and solutions.
We integrate R&D, manufacturing, and international export, delivering high-performance welding machines designed to make welding more efficient, precise, and reliable.
With a strong focus on technology and product quality, ALAND provides professional welding solutions for industrial users around the world.

Product Portfolio
Our comprehensive product range includes:

If you are interested in our products or plan to import the 315A Portable IGBT Inverter MIG MMA Welder and other construction products, please feel free to contact us. Looking forward to long-term cooperation with you.
