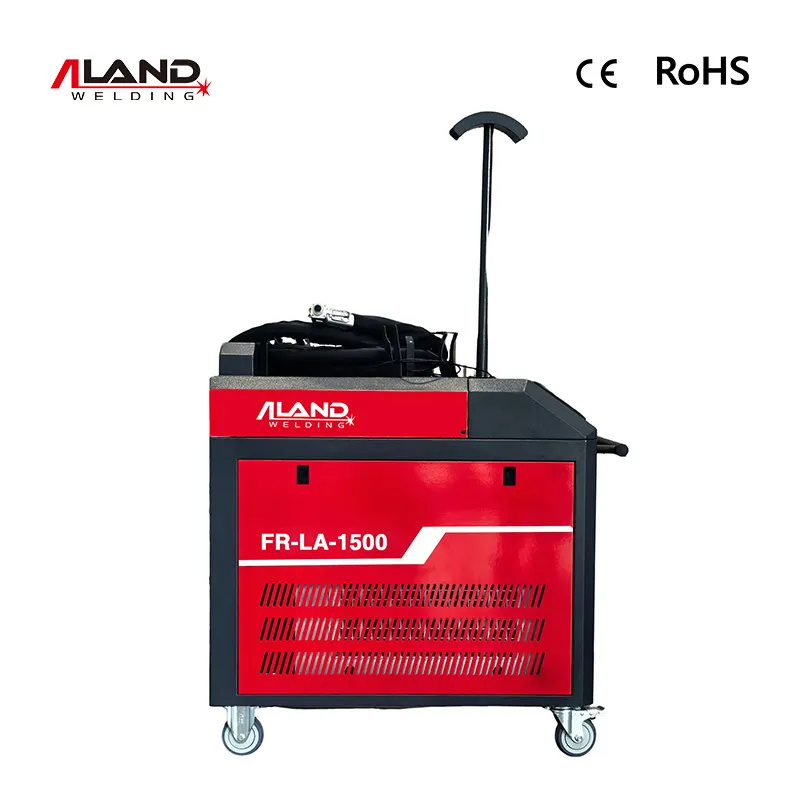

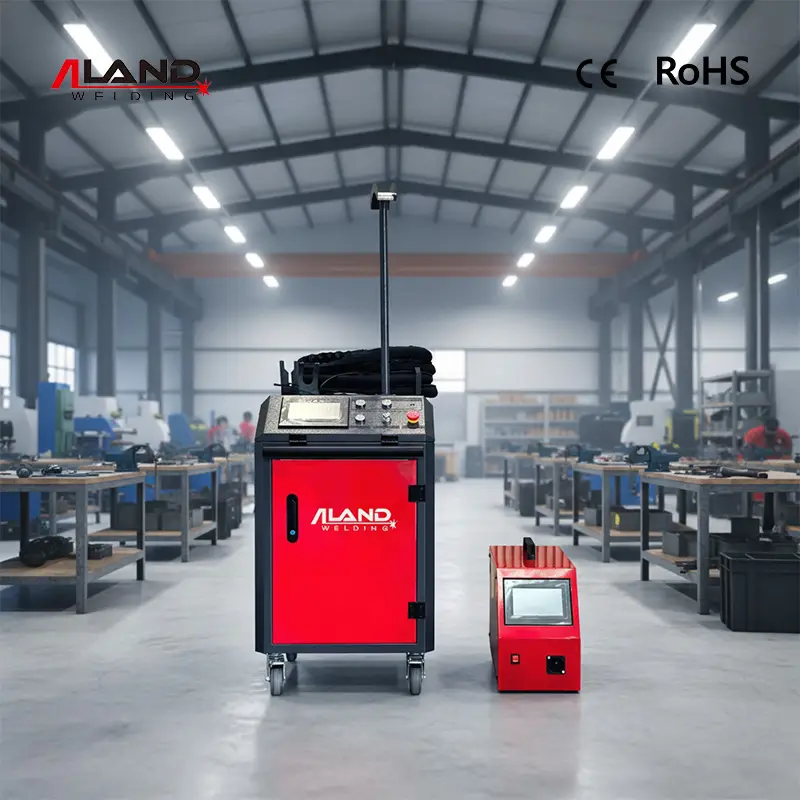

1500W Handheld Laser Welding Machine 4 In 1 Laser Welder Cutting Cleaning Derusting Description:
The 1500W handheld laser welding machine is a multifunctional 4-in-1 laser welder integrating laser welding, laser cutting, weld seam cleaning, and laser derusting in one compact system. Available in 1200W, 1500W, 2000W, and 3000W power options, it provides high efficiency and precision for modern metal fabrication applications.
This handheld laser welding machine is suitable for steel, stainless steel, galvanized steel, aluminum, and copper sheet processing. Featuring stable laser output, fast welding speed, low heat deformation, and easy operation, it greatly improves welding quality and production efficiency compared with traditional welding methods.
The laser welding/cutting/cleaning/derusting machine is widely used in sheet metal fabrication, stainless steel processing, metal repair, hardware manufacturing, and industrial maintenance applications.
Handheld Fiber Laser Welding Machine model FR-LA series is a revolutionary 4-in-1 industrial system that combines high-precision laser welding, efficient cutting, seam cleaning, and laser derusting into a single portable device. Supporting a power range from 1200W to 3000W, this multi-function equipment is engineered to deliver superior results on various metals, including stainless steel, aluminum, galvanized steel, and copper sheets.
With its advanced fiber laser source and ergonomic handheld gun, it ensures deep penetration and minimal heat-affected zones, making it an essential metal fabrication tool for workshops seeking a high-performance, semi-auto welding solution.
Enhance your production efficiency with this versatile multi-function laser machine designed for complex industrial tasks across diverse sectors like automotive parts and kitchenware manufacturing. The FR-LA-1500 laser welder setup allows for seamless transitions between welding, cutting, and cleaning modes, significantly reducing the need for multiple machines and post-weld processing. As a durable and cost-effective portable laser welding system, it offers a professional-grade solution for B2B suppliers and independent businesses looking to optimize their workflow with a high-speed, reliable 4-in-1 laser welding equipment.
FR-LA-3000 Fiber Laser Welder Specification:
| Model | FR-LA-1200 | FR-LA-1500 | FR-LA-2000 | FR-LA-3000 |
| Power Supply | 1*220V, 50/60Hz | 3*380V, 50/60Hz | ||
| Rate Input Capacity (KVA) | 6 | 8 | 9 | 13 |
| Rate Input Current(A) | 27 | 36 | 41 | 20 |
| Laser Power | 1200W | 1500W | 2000W | 3000W |
| Output power stability | 2% | 2% | 2% | 2% |
| Welding Depth of Fusion | 0.5-2.5mm | 0.5-3.0mm | 0.5-4.0mm | 0.5-5.0mm |
| Welding Seam | ≤2mm | ≤3mm | ≤4mm | ≤5mm |
| Welding Speed | 0-120mm/s | 0-120mm/s | 0-120mm/s | 0-120mm/s |
| Dia. of Wire | 0.8, 1.0 | 0.8, 1.0,1.2 | 0.8, 1.0,1.2,1.6 | 0.8, 1.0,1.2,1.6 |
| Weight | 160kg | 165kg | 170kg | 180kg |
| L*W*H(mm) | 900*600*980 | 900*600*980 | 900*600*980 | 900*600*980 |
Fiber Laser Welder Feature:
High-quality semiconductor laser and stable cooling system
The torch has a special nozzle suitable for welding at different angles and positions on the workpiece
The operation is easy, and it gets a high welding speed and high quality
The efficiency can be up 2-10times than TIG welding and economize on manpower.
General staff can use it, and no need for special training.
You can fit a wire with a separate wire feeder system.
Light hand torch and with 10 m original Fiber.
Long life Accessories and save energy, lower use cost.
Special safety protection function for welding workers.
Laser model: continue or modulation
Laser wavelength: 1080nm
Cooling system: input/output temperature-controlled unit cooler
Welding materials: steel/stainless steel/aluminum/copper.
Multi-functions: welding, cutting, derusting, and weld seam cleaning.
Standard Accessories
Wire feeder
Torch 10m
Wire feeding hose
Protection Goggle
welding and cutting, cleaning nozzles
wire feed rollers
Optional Accessories
Torch and system: SUP21S, SUP23T.
Twin-wire feeder system
