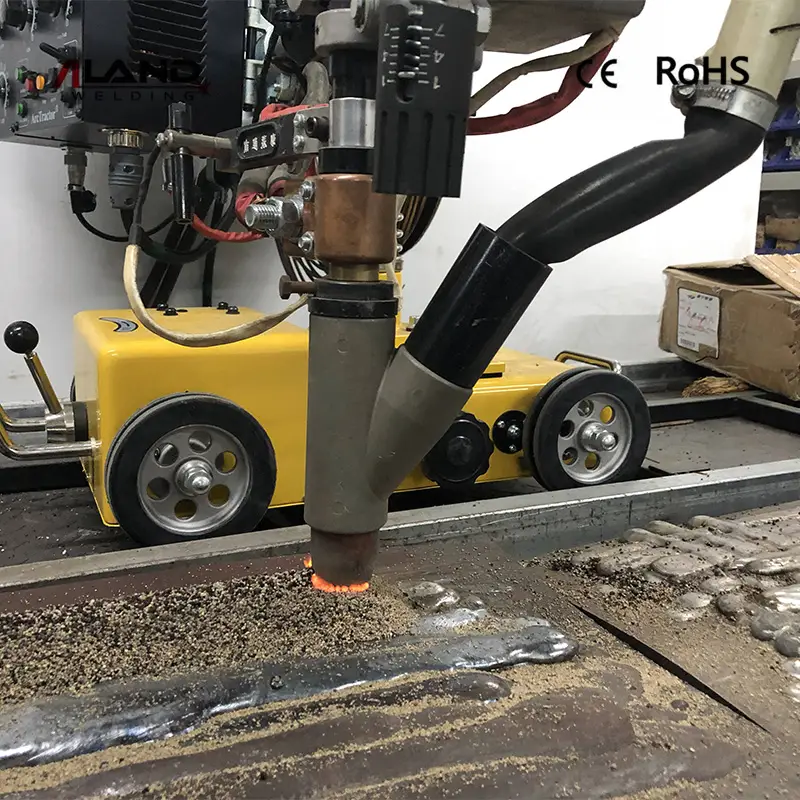

CC CV 1000A IGBT Inverter SAW Welding Machine With MMA And Gouging Functions Description:
The CC CV 1000A IGBT Inverter SAW Welding Machine is a high-performance Submerged Arc Welding Machine designed for heavy-duty industrial welding applications requiring exceptional weld quality, precise output control, and continuous high-current operation. Featuring advanced IGBT inverter technology, this professional Submerged Arc Welder supports Submerged Arc Welding (SAW), MMA Stick Welding, and Carbon Arc Gouging, making it an ideal solution for large-scale fabrication and automated welding systems.
With a rated output of 1000A at 100% duty cycle and a maximum output capacity of 1500A, the CC CV 1000A Submerged Arc Welding System delivers outstanding welding productivity for thick plate fabrication and high-deposition welding applications. The precise output control technology ensures a highly stable arc, reduced heat-affected zones, minimized welding distortion, and improved mechanical properties of welded joints.
The machine features current preset capability, intelligent line voltage compensation, and multiple output characteristics to maintain welding consistency even when input voltage fluctuates by up to 15%. The modular parallel design enhances system reliability while providing flexible expansion for demanding industrial operations.
Built with comprehensive protection systems including overload protection, overcurrent protection, phase loss protection, and short-circuit protection, this industrial submerged arc welding power source ensures long service life and reliable performance under harsh working conditions.

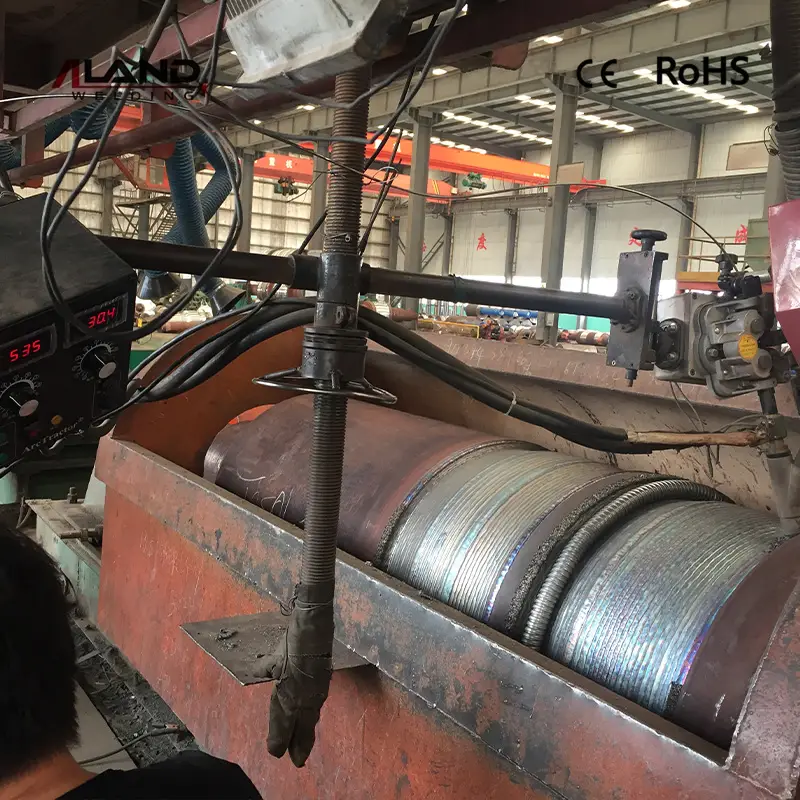

Suitable for welding mild steel, alloy steel, stainless steel, and heat-resistant steel, the CC CV1000A SAW Welding System is widely used in wind tower manufacturing, shipbuilding, pressure vessel production, steel structure fabrication, bridge construction, offshore engineering, and heavy industrial manufacturing.
CC CV 1000A IGBT Inverter SAW Welding Machine Specification:
| Model | CC/CV 1000 |
| Power | 3*380V±15% |
| Rated Output Current/Voltage/Duty Cycle | 1000A/50V/100% |
| Output Range | CC: 100-1000A CV: 10-50V |
| Dimension (HWD, mm) | 740*440*946 |
| Net Weight Lbs. (KG) | 265(120) |

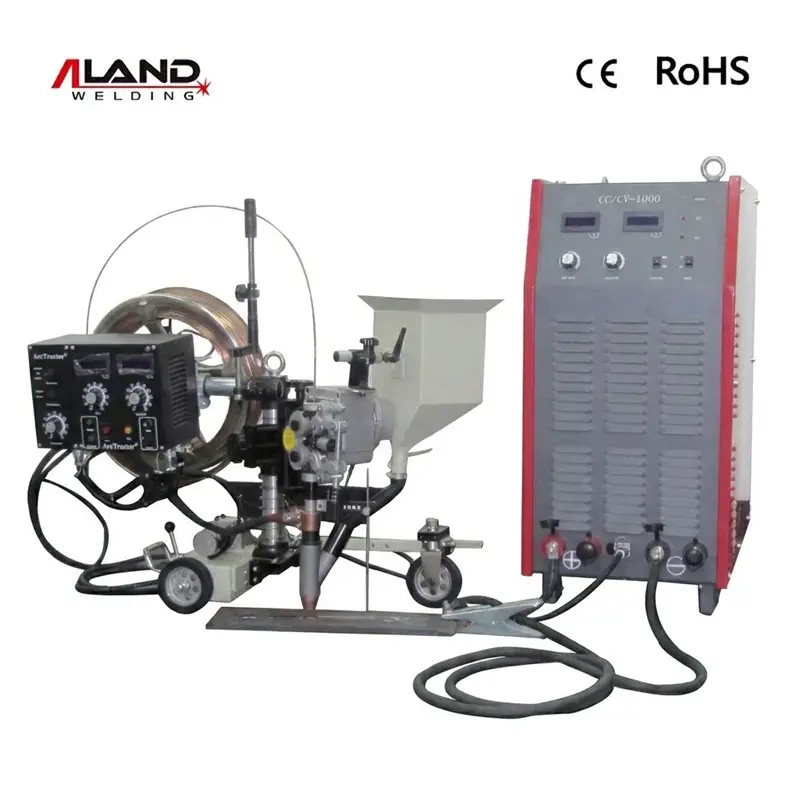

Standard Accessories
Earth clamp cable 5m
Welding Tractor cable 15m
Welding Tractor
Optional Accessories
Welding tractors of different types
CC CV 1000A submerged arc welding system Feature:
IGBT inverter DC SUBMERGED ARC and MMA, Gouging
Ability to preset the current
1000A @ 100% duty cycle with a maximum output capacity of 1500A
Reduced heat-affected zone, minimized distortion, and increased mechanical properties
Overloading, overcurrent, loss of phase, and short-circuit protection ensure long-lasting performance
The maximum possible welding current of 1500 A is provided by the power source CC/CV1000
Line voltage compensation maintains weld consistency, even with line voltage changes of 15%
Precise output control results in a stable arc
Multi-output characteristics
Modular parallel to enhance reliability
User-friendly operation panel
About ALAND WELDING:
Founded in 2012, BEIJING ALAND WELDING is a professional manufacturer and global supplier of advanced welding equipment and solutions.
We integrate R&D, manufacturing, and international export, delivering high-performance welding machines designed to make welding more efficient, precise, and reliable.
With a strong focus on technology and product quality, ALAND provides professional welding solutions for industrial users around the world.
Product Portfolio
Our comprehensive product range includes:
Pulse MIG/MAG Welding Machines
AC/DC TIG Welders
MMA (Stick) Welders
Multi-Function Welding Machines
Plasma Cutting Machines

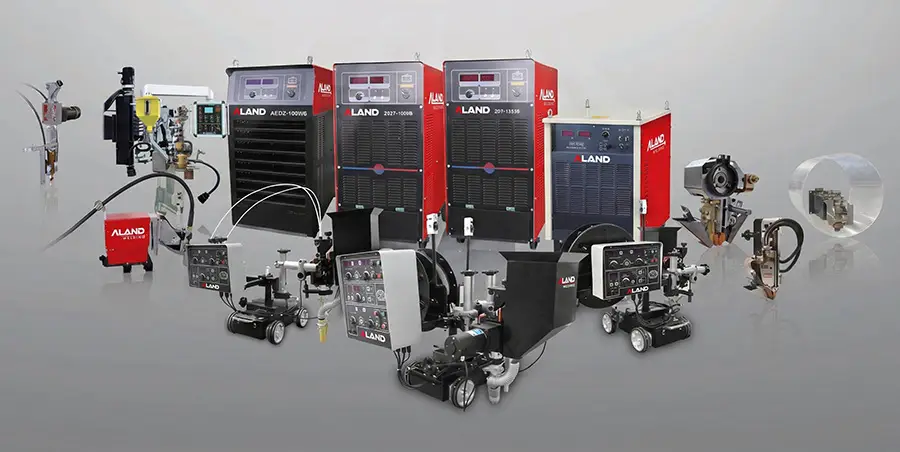

Submerged Arc Welding Equipment
