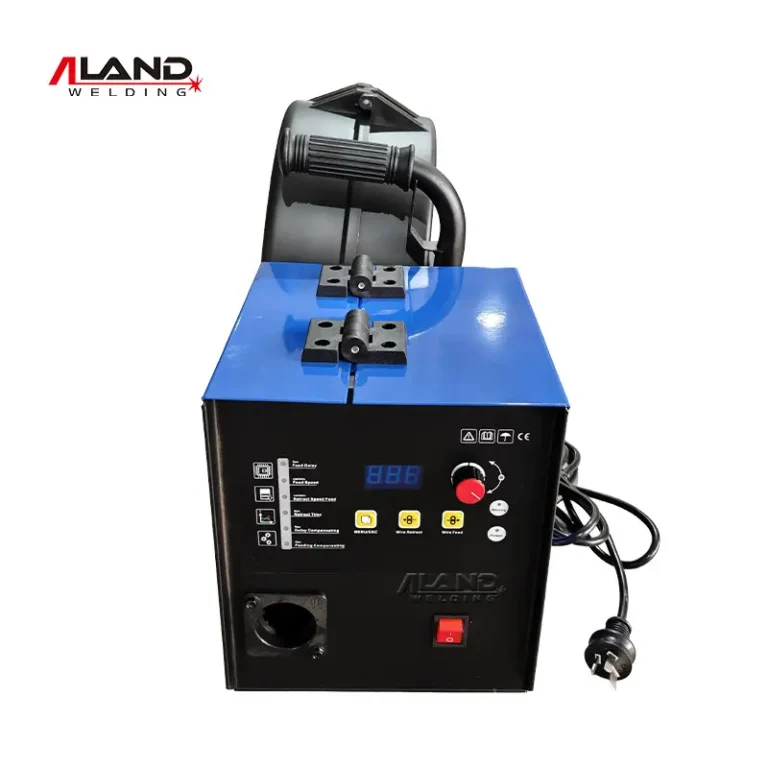

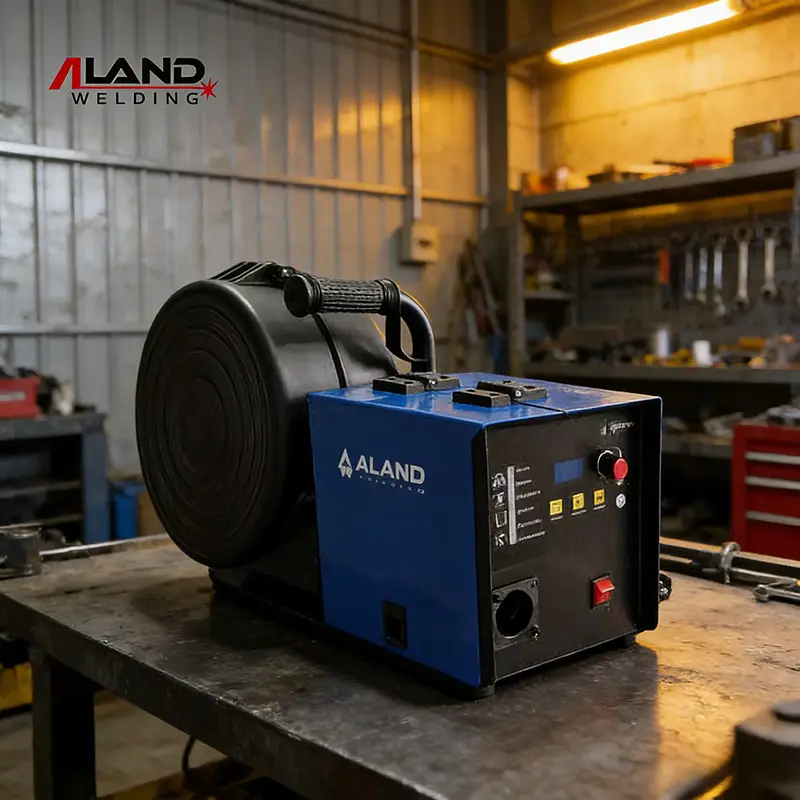

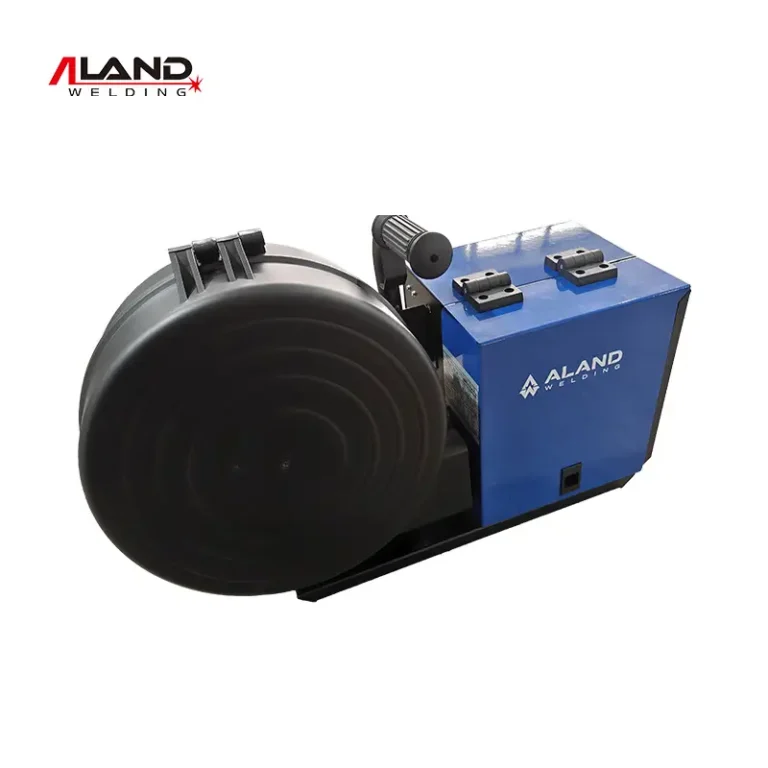

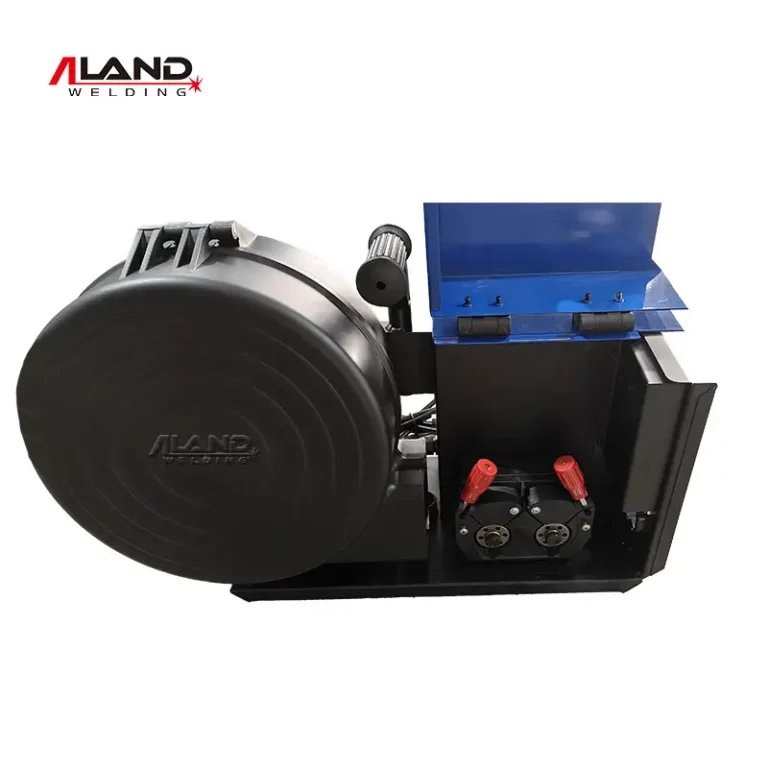

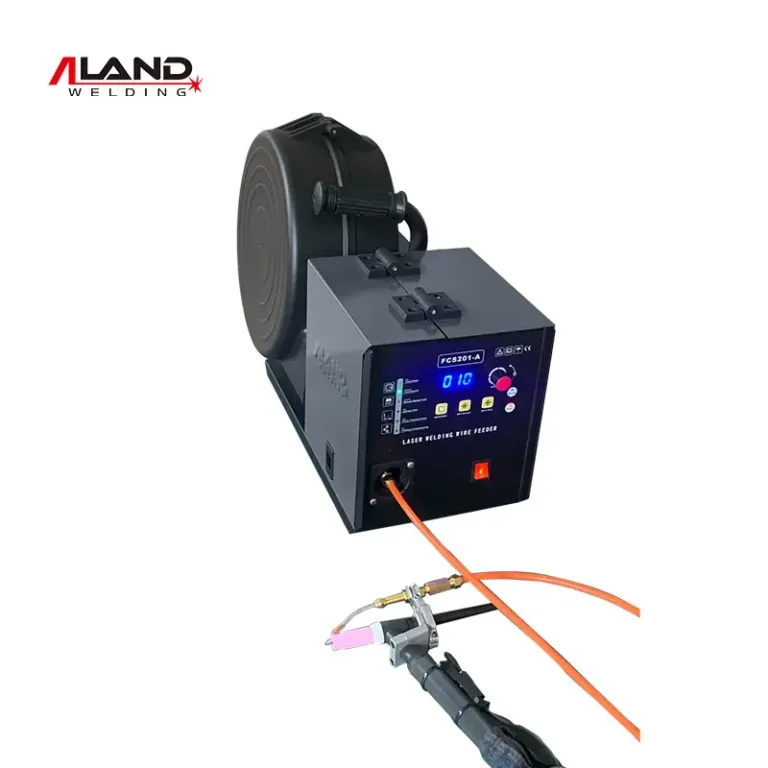

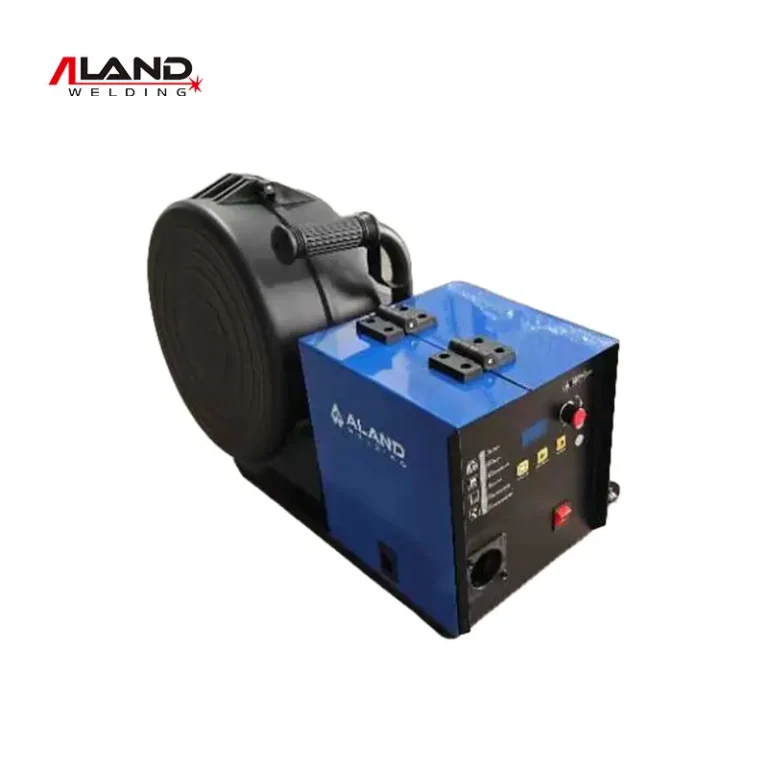

Automatic TIG Wire Feeder Inverter Cold Wire Feeding Machine for Stainless Steel Aluminum Welding Description:
The automatic TIG wire feeder is designed for precise and efficient wire feeding in argon arc welding applications. This inverter TIG cold wire feeding machine improves welding consistency, increases deposition efficiency, and reduces operator fatigue, making it ideal for high-quality stainless steel and aluminum welding.
With stable wire feeding performance and precise speed control, the automatic cold wire feeder helps achieve smoother weld seams and better heat input control, especially in thin material and precision welding applications. It is compatible with various TIG welding systems and can be integrated into manual or automated welding processes.
FCS 205 Automatic TIG welding wire feeder is our high-tech product with special-purpose power parts and up-to-date inverter control IC. It is suitable for welding of stainless steel, copper, Aluminum, Titanium, cast steel, alloy steel, carbon steel, and compound metal material wire in all positions.
FCS205 Automatic TIG Wire Feeder Specification:
| Model | FCS205 |
| Power Voltage | 1~220 V±10%; 50/60Hz |
| Motor Rated Voltage | 24V |
| Motor Rated Power | 80W |
| Feeding Delay time | 0.00~3.00s |
| Feeding Speed | 300~6000mm/min |
| Retract Speeding Feed | 300~6000mm/min |
| Retract Time | 0.00~3.00s |
| Delay Compensation time | 0.00~3.00s |
| Feeding Compensation time | 0.00~3.00s |
| Wire feed back length | 0-100mm |
| Resend the wire length after the end welding | 0-100mm |
| Resend the wire time after the end of welding | 0-800ms |
Standard Accessories
Automatic TIG Wire Feeder 1 Unit
Optional Accessories
Hand and Automatic TIG torch
TIG Wire Feeding System Feature:
- Power supply: 1*220V
- Digital control
- Feeding motor power: 80W
- Delay feeding time: 0-800ms
- Wire speed range: 300mm-6000mm/min.
- Wire Feed back speed: 6000mm/min
- Wire feed back length: 0-100mm
- Resend wire length after end welding: 0-100mm.
- Resend wire time after end welding: 0-800ms

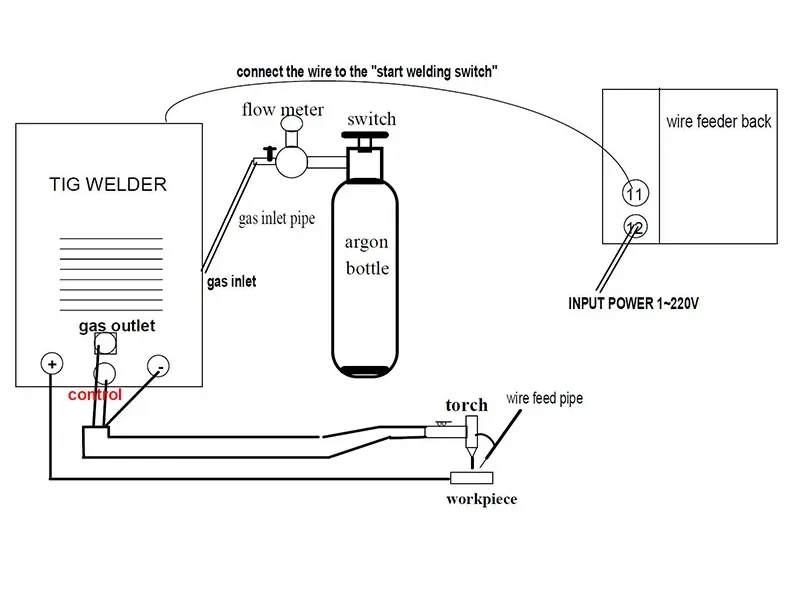

How to operate the FCS205 TIG welder
Check if all is normal. After all settings are completed, turn on the power of the TIG welder and the wire feeder, then press the gun switch to perform welding.
