AW70N AW70Y Series 3-Circuit 700A Water Cooling Robotic Welding Torch Description:
The AW70N/AW70Y Series 3-Circuit 700A Water Cooling Robotic Welding Torch is a premium robotic welding torch designed for high-current, high-speed automated welding applications. Compatible with leading industrial robots including ABB, KUKA, YASKAWA, FANUC, UNIVERSAL ROBOTS, and Kawasaki, this 700A water-cooled robotic welding torch delivers outstanding welding performance, superior cooling efficiency, and exceptional durability in demanding production environments.
Featuring an advanced 3-circuit water cooling system, the AW70N/AW70Y robotic welding torch provides independent cooling for the contact tip, welding nozzle, torch neck, and other critical torch head components. This highly efficient cooling design ensures stable operation under high-current and high-speed welding conditions, significantly extending consumable life and reducing maintenance costs.
The torch is equipped with an integrated anti-collision device offering high sensitivity, precise positioning, and reliable automatic reset capability. The quick-release torch neck design allows fast replacement and maintenance, minimizing production downtime and maximizing equipment utilization.
AW70N/70Y Series 3-Circuit 700A Water Cooling Robotic Welding Torch Specification:
| Model | AW70N / AW70Y |
| Duty Cycle | CO2 700A/100% |
| MAG 650A/100% | |
| Cooling Method | 3-circuit water-cooled |
| Wire diameter | 0.8–1.6mm |
| Reset the accuracy of the anti-collision device | ±0.03mm |
3-Circuit 700A robotic welding torch Feature:
- Compatible: ABB, KUKA, YASKAWA, FANUC, UNIVERSAL ROBOTS, Kawasaki
- High reliability and durability;
- Integrated anti-collision device, high reset accuracy, sensitivity, and reliability;
- The torch neck can be easily disassembled, quickly replaced, and maintained, greatly improving equipment utilization and flexibility;
- It can perform double wire welding and accommodate two welding wires in one contact tip, greatly improving the welding efficiency;
- The water cooling insulation sleeve can be replaced;
- 3-circuit water cooling: can be used for nozzle contact CIP. Efficient cooling of the torch neck and other torch head accessories can fully meet the requirements for higher Current and high-speed welding;
- Nozzle positioning function can be added;
- High-quality sheaths and tubes, resistant to long-term fatigue bending without damage;
- Multiple options are available for neck length, curvature, and nozzle style, and customization can be made as requested.

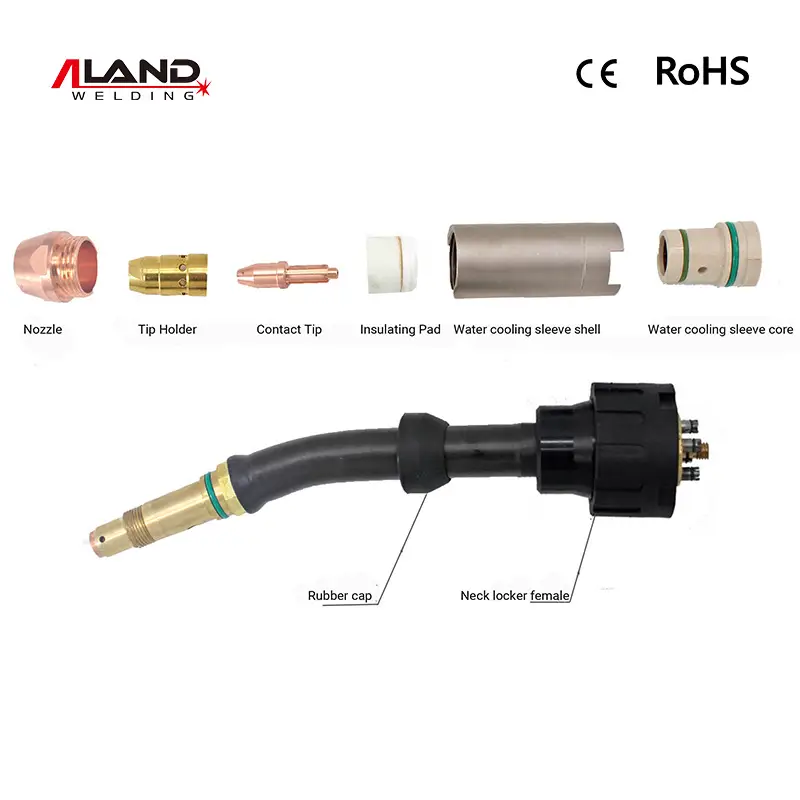

AW70N/70Y Series Water Cooling Robotic Welding Torch Parts:
| No. | Description | Order No. | Remarks | |
| 1 | Torch Assembly: (Torch+anti-collision+flange +holder+cables) | AW70N | Without holder | |
| AW70Y | With holder | |||
| 2 | Neck 22° | Through-arm | 011AW70NS/22/L | L: torch length None: short type 100: extend 100mm 200: extend 200mm …… |
| External | 010AW70YS/22/L | |||
| 3 | Neck 45° | Through-arm | 011AW70NS/45/L | |
| External | 010AW70YS/45/L | |||
| 4 | Customized length and angle | 011AW70N(or Y)S/A/L | A: angle L: torch length | |
| 5 | Dual wire Nozzle | 045S04xx79 | XX: nozzle dia. | |
| 6 | Dual wire Contact Tip | 026S02Ad56 | A: hole shape 1. flat hole 2. double circular hole d: dual wire diameter | |
| 7 | Tip Holder | 036S031730 | ||
| 8 | Insulated lining tube | 071S040045 | ||
| 9 | Check ring | 076S010053 | ||
| 10 | Water cooling insulation sleeve shell | 060S057011 | ||
| 11 | Water cooling insulation sleeve core | 067S067013 | ||
| 12 | Liner for torch cable | 082S0XXX/YY | XXX: Length of liner YY: wire diameter | |
| 13 | Torch cables | AW70NS/abcd | ab: fill cable length c: connector type of wire feeder d: wire clamping(0 without, 1 with) | |
