AW6023 Series 2-Circuit 600A Water Cooling Robotic Welding Torch

AW6023 Series 2-Circuit 600A Water Cooling Robotic Welding Torch Description:

The AW6023 Series 2-Circuit 600A Water Cooling Robotic Welding Torch is a high-performance robotic welding torch designed for demanding automated robotic MIG welding applications. Engineered for industrial robotic welding systems, this 600A robotic welding torch delivers exceptional arc stability, efficient cooling performance, and long service life under continuous heavy-duty production conditions.

Featuring an advanced dual-circuit water cooling system, the AW6023 robotic welding torch effectively dissipates heat generated during high-current welding operations, ensuring stable performance and extending the lifespan of consumable components. Its robust construction and precision manufacturing provide reliable operation even in harsh industrial environments.

2-Circuit 600A Water Cooling Robotic Welding Torch Specification:

Model	AW6023N	AW6023Y
Duty Cycle	CO2 650A/100%	CO2 650A/100%
	MAG 600A/100%	MAG 600A/100%
Cooling Method	2-circuit water cooling	2-circuit water cooling
Wire diameter	0.8-1.6mm	0.8-1.6mm
Reset the accuracy of the anti-collision device	±0.03mm	±0.03mm

AW6023 Series water cooling robotic welding torch Feature:

• Compatible: ABB, KUKA, YASKAWA, FANUC, UNIVERSAL ROBOTS, Kawasaki
• High reliability and durability
• Integrated anti-collision protector, high reset accuracy, sensitivity, and reliability;
• The torch neck can be easily disassembled, quickly replaced, and maintained, greatly improving equipment utilization and flexibility;
• The water-cooling insulation sleeve can be replaced;
• 2-circuit water cooling: simultaneously cooling the conductive circuit and nozzle;
• Wire clamping function or nozzle positioning function can be added;
• High-quality sheaths and tubes, resistant to long-term fatigue bending;
• Multiple options are available for neck length, curvature, and nozzle style, and customization can be made as requested;

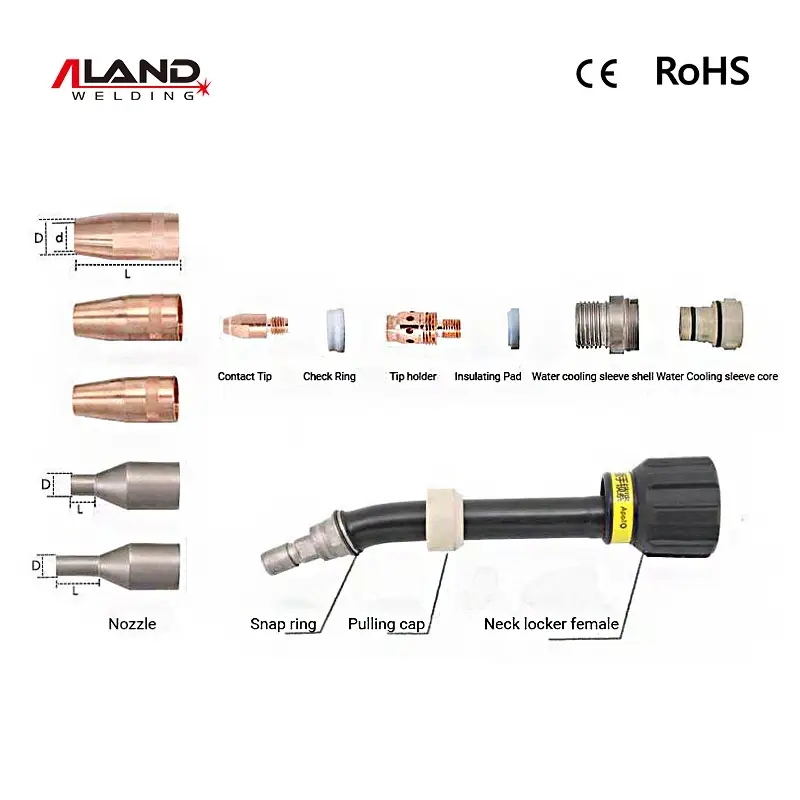

AW6023 Series Water Cooling Robotic Welding Torch Parts:

No.	Description		Order No.	Remarks
1	AW6023 Torch Assembly： (Torch+anti-collision +flange +holder +cables)		AW6023N	Through-arm
			AW6023Y	External
2	Neck 22º		011AW6023C/22/L	L: torch Length None: standard length 100: extend 100mm 200: extend 200mm
	Neck 45º		011AW6023C/45/L
	Customized length and angle as requested		011AW6023C/A/L	A: angle L: torch length
3	Nozzle (standard) Length 61mm	D=17, d=14	043021461
		D=21, d=17	043021661
		D=22, d=18.5	043021961
	Nozzle (customized)	D=18, L=10-150	043021800	Length can be customized
		D=14, L=10-50	043021400
4	Contact Tip M8*30		02002xx11	XX: wire diameter
5	Tip Holder		034021015
6	Check ring		070016023
7	Water cooling insulation sleeve shell		060056000
8	Water cooling insulation sleeve core		064066000
9	Snap ring		904QJKH001
10	Pulling cap		063006000
11	Neck locker		905QJSM001
12	Insulating pad		080046000
13	Through-arm anti-collision: FZ-NW		210AW07100
	External anti-collision: FZ-CZ		211AW02300
14	Flange		Remark Robot model
15	Liner tube	For torch neck	082Y50XXX/YY	XXX: liner length YY: wire diameter
		For torch cable	085035XXX/YY
16	Torch cables		AW6023C/abcd	ab: cable length, c: connector type of wirefeeder, d: wire clamping function
