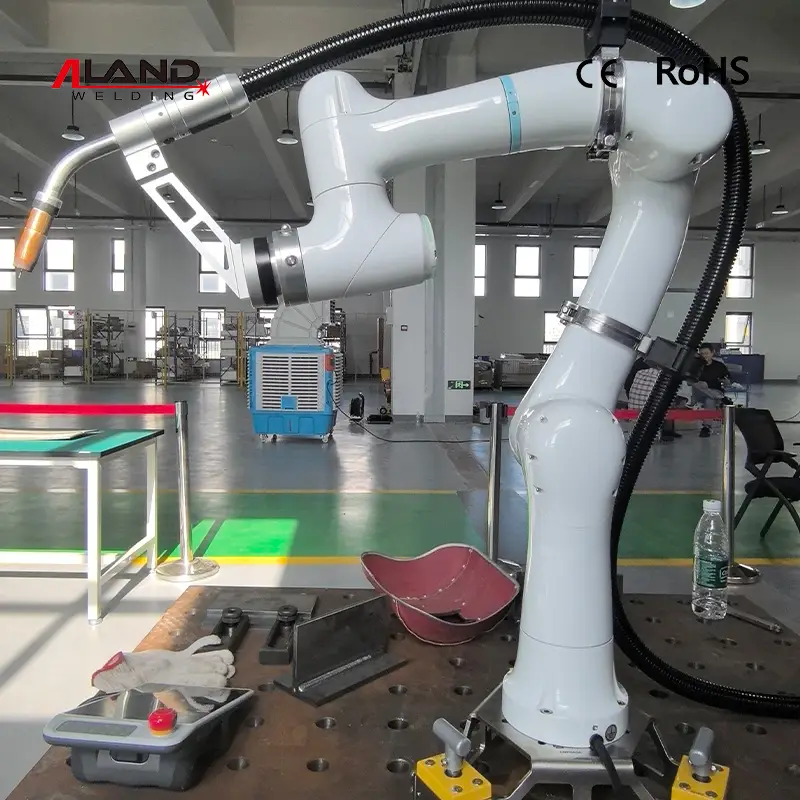

6 Axis Collaborative Robot Arm for MIG TIG Laser Welding Description:
The 6 Axis Collaborative Robot Arm is an advanced COBOT welding robot designed for intelligent MIG, TIG, and laser welding automation. Combining high precision, flexible movement, and easy programming, this 6-axis collaborative robot helps manufacturers improve welding quality, increase production efficiency, and reduce labor costs while simplifying automation deployment.
Powered by an intuitive Hualing fast programming system, the COBOT welding arm enables users to create welding programs quickly without complex robot programming knowledge. This user-friendly interface significantly shortens setup time and allows technicians to focus on production instead of programming.
The robot is fully compatible with MIG welders, TIG welders, and fiber laser welding machines, providing stable welding trajectories, precise motion control, and consistent weld quality across a wide range of materials and applications. Its collaborative design allows safe human-robot cooperation, making it suitable for both flexible manufacturing and high-volume automated production.
The 6 Axis Collaborative automation welding robot is widely used in automotive manufacturing, metal fabrication, steel structures, construction machinery, shipbuilding, pressure vessels, stainless steel products, furniture manufacturing, and other intelligent industrial automation applications.
6 Axis Collaborative Robot Arm for MIG TIG Laser Welding Specification:
| Model | CR03 | CR05 | CR10 | CR16 | CR20 | CR30 |
| Power Supply | 1x220V | 1x220V | 1x220V | 1x220V | 1x220V | 1x220V |
| Pavload | 3kgs | 5kgs | 10kgs | 16kgs | 20kgs | 30kgs |
| Reach | 622mm | 922mm | 1400mm | 1034mm | 1854mm | 1403mm |
| Degrees freedom | 6axis | 6axis | 6axis | 6axis | 6axis | 6axis |
| Pose repeatability | ±0.02mm | ±0.02mm | ±0.05mm | ±0.03mm | ±0.1mm | ±0.1mm |
| Axis movement | ±175 degree | ±175 degree | ±175 degree | ±175 degree | ±175 degree | ±175 degree |
| Max moving speed | 1m/S | 1m/S | 1m/S | 1m/S | 2m/S | 2m/S |
| Control I/O port | DI:2 DO:2 AI:2 AO:2 | DI:2 DO:2 AI:2 AO:2 | DI:2 DO:2 AI:2 AO:2 | DI:2 DO:2 AI:2 AO:2 | DI:2 DO:2 AI:2 AO:2 | DI:2 DO:2 AI:2 AO:2 |
| IP classification | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| Program | Modbus Tcp, 485 | Modbus Tcp, 485 | Modbus Tcp, 485 | Modbus Tcp, 485 | Modbus Tcp, 485 | Modbus Tcp, 485 |
| Communication | C#/C++/Python/ROS/ROS2 | |||||
| Power comsumption | 276W | 314W | 503W | 410W | 806W | 909W |
| Weight | 15kg | 22kg | 40kg | 40kg | 85kg | 85kg |
| Temperature | -10ÂşC~60ÂşC | -10ÂşC~60ÂşC | -10ÂşC~60ÂşC | -10ÂşC~60ÂşC | -10ÂşC~60ÂşC | -10ÂşC~60ÂşC |
Collaborative Robot Feature:
Light weight and mini style robot.
Hualing fast program,very easy operation.
High efficiency and high quality welding when connecting with MIG,TIG and laser welding machine.
Technicians are free from programming work.
Optional Accessories:
Moving cart
weld tracker
Magnetism base
Mig welder
Tig welder
Laser welder
Fast programing handler
Handle controller
