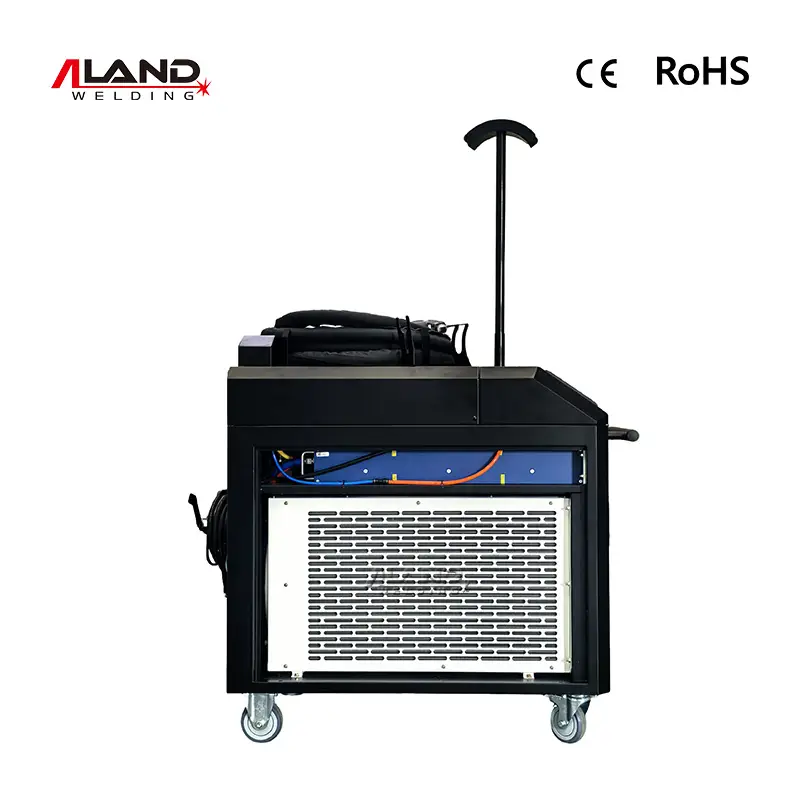

5 In 1 Handheld 3000W Fiber Laser Welding Cleaning Cutting Derusting System Description:
The 5 in 1 handheld 3000W fiber laser system integrates laser welding, laser cutting, weld seam cleaning, surface cleaning, and laser derusting into one high-performance multifunctional machine. Designed for industrial metal fabrication, this 3000W handheld fiber laser welding machine delivers fast processing speed, deep penetration, and high production efficiency.
Equipped with advanced fiber laser technology, the machine provides stable laser output, low heat deformation, and smooth welding results. It is suitable for processing stainless steel, carbon steel, galvanized steel, aluminum, and copper materials in demanding industrial applications.
This 3000W laser welding, cleaning, cutting, and derusting system is widely used in sheet metal fabrication, heavy-duty metal processing, stainless steel manufacturing, industrial maintenance, automotive repair, and metal surface treatment industries.
5 In 1 Handheld 3000W Fiber Laser Welding system is a cutting-edge multi-functional solution designed to integrate laser welding, cutting, weld seam cleaning, derusting, and coating removal into one powerful industrial unit. Utilizing a high-stability 3000W fiber laser source, this machine delivers exceptional performance for thick plate welding and high-speed metal cutting, ensuring deep penetration and aesthetic finishes on stainless steel, aluminum, and carbon steel. The advanced handheld laser system provides operators with unmatched flexibility, making it an essential tool for complex fabrication tasks where precision and versatility are paramount in demanding production environments.
Handheld 3000W Fiber Laser Welding Machine Specification:
| Model | FR-LA-1200 | FR-LA-1500 | FR-LA-2000 | FR-LA-3000 |
| Power Supply | 1*220V, 50/60Hz | 3*380V, 50/60Hz | ||
| Rate Input Capacity (KVA) | 6 | 8 | 9 | 13 |
| Rate Input Current(A) | 27 | 36 | 41 | 20 |
| Laser Power | 1200W | 1500W | 2000W | 3000W |
| Output power stability | 2% | 2% | 2% | 2% |
| Welding Depth of Fusion | 0.5-2.5mm | 0.5-3.0mm | 0.5-4.0mm | 0.5-5.0mm |
| Welding Seam | ≤2mm | ≤3mm | ≤4mm | ≤5mm |
| Welding Speed | 0-120mm/s | 0-120mm/s | 0-120mm/s | 0-120mm/s |
| Dia. of Wire | 0.8, 1.0 | 0.8, 1.0,1.2 | 0.8, 1.0,1.2,1.6 | 0.8, 1.0,1.2,1.6 |
| Weight | 160kg | 165kg | 170kg | 180kg |
| L*W*H(mm) | 900*600*980 | 900*600*980 | 900*600*980 | 900*600*980 |
5-in-1 handheld fiber laser welding machine Feature:
High-quality semiconductor laser and stable cooling system
The torch has a special nozzle suitable for welding at different angles and positions on the workpiece
The operation is easy, and it gets a high welding speed and high quality
The efficiency can be up 2-10 times than TIG welding and economize on manpower.
General staff can use it, and no need for special training.
You can fit a wire with a separate wire feeder system.
Light hand torch and with 10 m original Fiber.
Long life Accessories and save energy, lower use cost.
Special safety protection function for welding workers.
Laser model: continue or modulation
Laser wavelength: 1080nm
Cooling system: input/output temperature-controlled unit cooler
Welding materials: steel/stainless steel/aluminum/copper.
Multi-functions: welding, cutting, derusting, and weld seam cleaning.
Standard Accessories
Wire feeder
Torch 10m
Wire feeding hose
Protection Goggle
welding and cutting, cleaning nozzles
wire feed rollers
Optional Accessories
Torch and system: SUP21S, SUP23T.
Twin-wire feeder system
