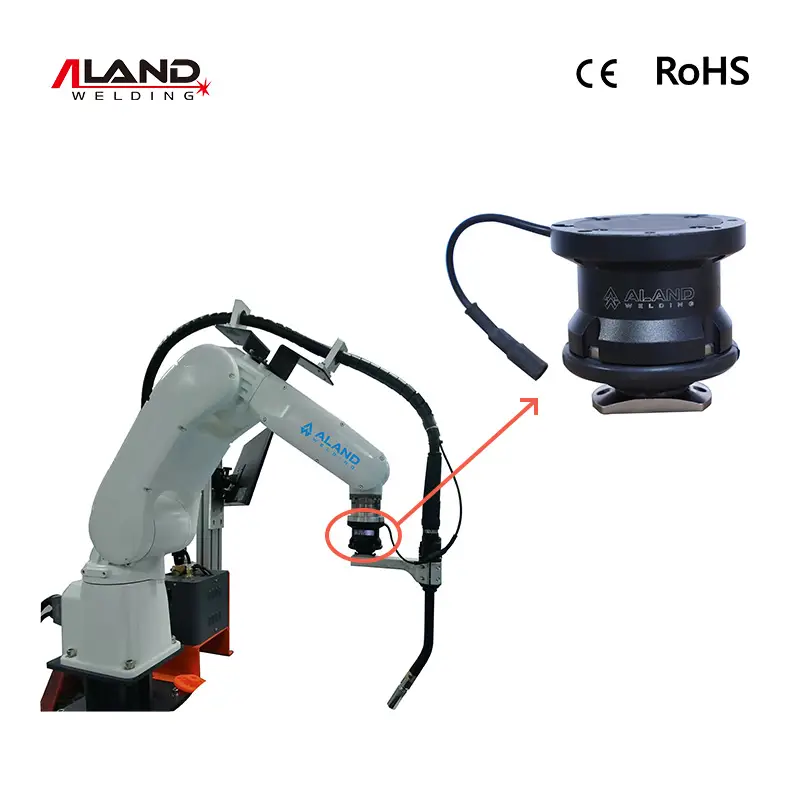

220V Anti-Collision Device for Robot Automation Welding Collision Sensor Protection Module Description:
The 220V Anti-Collision Device for Robot Automation Welding COBOT ARM is a high-precision robot collision protection device designed to safeguard collaborative robots and industrial robotic welding systems from accidental impacts during automated welding operations. Engineered for maximum reliability, this anti-collision device significantly reduces equipment damage, minimizes downtime, and enhances the safety and efficiency of robotic welding cells.
Designed to provide comprehensive protection, the robot anti-collision device offers impact detection in the X-axis, Y-axis, Z-axis, and rotational protection around the Z-axis, ensuring rapid response to unexpected collisions from multiple directions. This intelligent protection system effectively protects robotic welding torches, robot wrists, end effectors, and valuable automation equipment.
With its compact structure and lightweight design, the COBOT arm collision protection module minimizes additional payload on the robot arm, allowing faster movement, improved positioning accuracy, and greater operational flexibility without affecting robot performance.
Manufactured with premium materials and precision machining technology, the robot collision protection device delivers exceptional reset accuracy that meets international industrial standards. The integrated mechanical and electrical dual protection system ensures reliable operation, long service life, and a very low failure rate, making it ideal for continuous industrial automation applications.
The automation welding anti-collision device is widely used in collaborative robots (COBOTs), robotic MIG/MAG welding systems, robotic laser welding, automotive manufacturing, steel structure fabrication, construction machinery, shipbuilding, and intelligent industrial automation production lines.
220V Anti-Collision Device for Robot Automation Welding Specification:
| Type | Release Force | Application | Self Weight | Repeatability Reset Accuracy |
| FZ-Q-R | 8.2-10kg | Heavy torches, laser, flame, plasma cutting, handling, etc | 0.49kg | ±0.03mm |
| FZ-Q-B | 3-4kg | Light torches | 0.49kg | ±0.03mm |
| FZ-Q-Y | 1.5-3kg | Measuring, measuring tools, etc | 0.49kg | ±0.03mm |
| FZ-Q-P | ﹤1kg | Super light load | 0.49kg | ±0.03mm |
| FZ-Z-R | 8-10kg | Heavy torches, laser cutting, etc. | 0.9kg | ±0.03mm |
| FZ-Z-B | 3-5kg | light torches | 0.9kg | ±0.03mm |
| FZ-CZ-R | 12-20kg | Super long neck welding torch, laser, flame, plasma cutting, handling, and so on | 1.1kg | ±0.03mm |
| FZ-CZ-B | 10-12kg | Super long-neck torch, laser, flame, plasma cutting, handling and so on | 1.1kg | ±0.03mm |
Automation Welding Anti-Collision Device Feature:
Provide impact protection in the X or Y axis, Z-axis direction, and rotation protection around the Z-axis.
Small size and light weight: it is good for reducing the load on the robot arm, improving the stability and quick flexibility of robot movements
Allows large torsion Angle: maximum torsion degree or greater than 15° (a lot of products on the market can only be up to 10°), a larger allowable reverse range is conducive to a greater degree to reduce the equipment damage due to mechanical inertia.
High precision: reset accuracy meets international demands
High reliability: the selection of materials and processing technology, long service life, low failure rate, and mechanical and electrical double protection function
