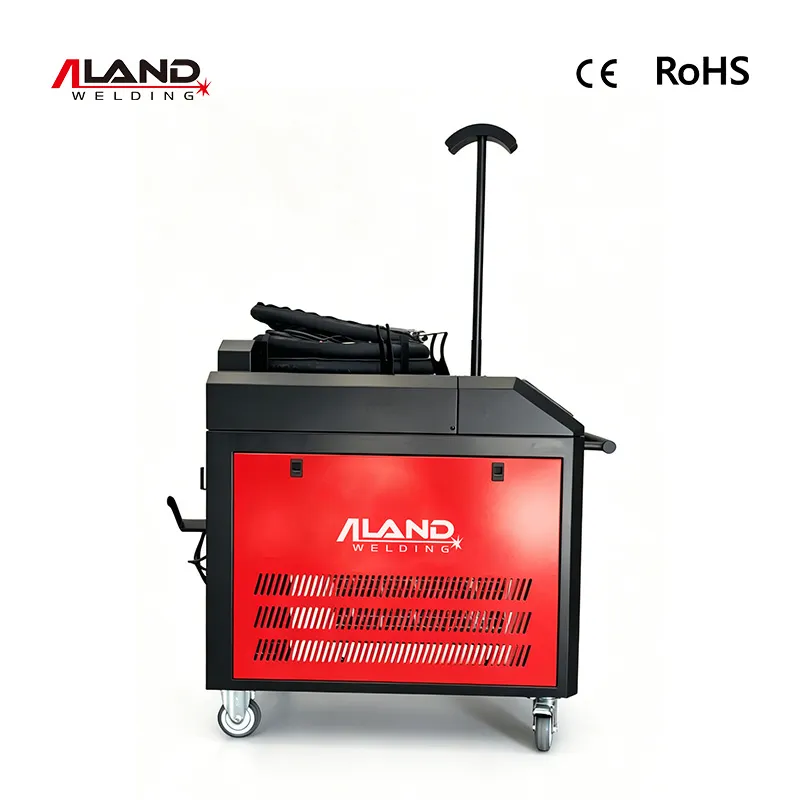

2000W Handheld Fiber Laser Welding Machine For Stainless Steel Aluminum Sale Description:
The 2000W handheld fiber laser welding machine is designed for high-speed and precision metal welding applications. Featuring advanced fiber laser technology, this handheld laser welder equipment delivers stable laser output, deep penetration, low heat deformation, and smooth weld seams for professional welding operations.
This 2000W laser welding machine is suitable for welding stainless steel, carbon steel, galvanized steel, aluminum, and other metal materials. With portable handheld operation and a user-friendly control system, it improves welding efficiency while reducing post-processing and labor costs.
The fiber laser welder equipment is widely used in sheet metal fabrication, hardware processing, stainless steel manufacturing, kitchen equipment, automotive parts, and industrial maintenance applications.
Handheld Fiber Laser Welding Machine model FR-LA series is a revolutionary 4-in-1 industrial system that combines high-precision laser welding, efficient cutting, seam cleaning, and laser derusting into a single portable device. Supporting a power range from 1200W to 3000W, this multi-function equipment is engineered to deliver superior results on various metals, including stainless steel, aluminum, galvanized steel, and copper sheets.
With its advanced fiber laser source and ergonomic handheld gun, it ensures deep penetration and minimal heat-affected zones, making it an essential metal fabrication tool for workshops seeking a high-performance, semi-auto welding solution.The
2000W fiber laser welder, hand-held laser welding machine, is a high-performance industrial solution designed for precise metal joining with exceptional speed and accuracy. This advanced portable laser welder utilizes a high-power fiber laser source to deliver deep penetration and clean weld beads on various materials, including stainless steel, aluminum, and carbon steel. With its ergonomic handheld gun and intuitive control interface, the 2000W laser welding equipment allows operators to handle complex geometries easily, making it an indispensable tool for modern fabrication shops looking to replace traditional TIG and MIG methods.
2000W Handheld Fiber Laser Welding Equipment Specification:
| Model | FR-LA-1200 | FR-LA-1500 | FR-LA-2000 | FR-LA-3000 |
| Power Supply | 1*220V, 50/60Hz | 3*380V, 50/60Hz | ||
| Rate Input Capacity (KVA) | 6 | 8 | 9 | 13 |
| Rate Input Current(A) | 27 | 36 | 41 | 20 |
| Laser Power | 1200W | 1500W | 2000W | 3000W |
| Output power stability | 2% | 2% | 2% | 2% |
| Welding Depth of Fusion | 0.5-2.5mm | 0.5-3.0mm | 0.5-4.0mm | 0.5-5.0mm |
| Welding Seam | ≤2mm | ≤3mm | ≤4mm | ≤5mm |
| Welding Speed | 0-120mm/s | 0-120mm/s | 0-120mm/s | 0-120mm/s |
| Dia. of Wire | 0.8, 1.0 | 0.8, 1.0,1.2 | 0.8, 1.0,1.2,1.6 | 0.8, 1.0,1.2,1.6 |
| Weight | 160kg | 165kg | 170kg | 180kg |
| L*W*H(mm) | 900*600*980 | 900*600*980 | 900*600*980 | 900*600*980 |
5-in-1 handheld metal laser welding machine Feature:
High-quality semiconductor laser and stable cooling system
The torch has a special nozzle suitable for welding at different angles and positions on the workpiece
The operation is easy, and it gets a high welding speed and high quality
The efficiency can be up 2-10 times than TIG welding and economize on manpower.
General staff can use it, and no need for special training.
You can fit a wire with a separate wire feeder system.
Light hand torch and with 10 m original Fiber.
Long life Accessories and save energy, lower use cost.
Special safety protection function for welding workers.
Laser model: continue or modulation
Laser wavelength: 1080nm
Cooling system: input/output temperature-controlled unit cooler
Welding materials: steel/stainless steel/aluminum/copper.
Multi-functions: welding, cutting, derusting, and weld seam cleaning.

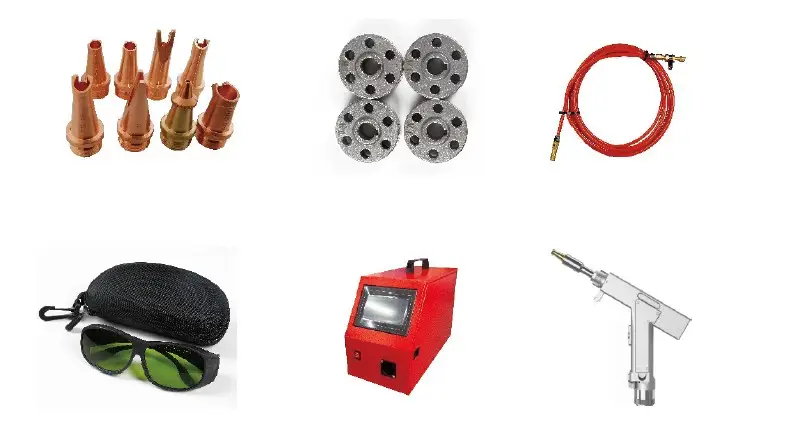

Standard Accessories
Wire feeder
Torch 10m
Wire feeding hose
Protection Goggle
welding and cutting, cleaning nozzles
wire feed rollers
Optional Accessories
Torch and system: SUP21S, SUP23T.
Twin-wire feeder system
