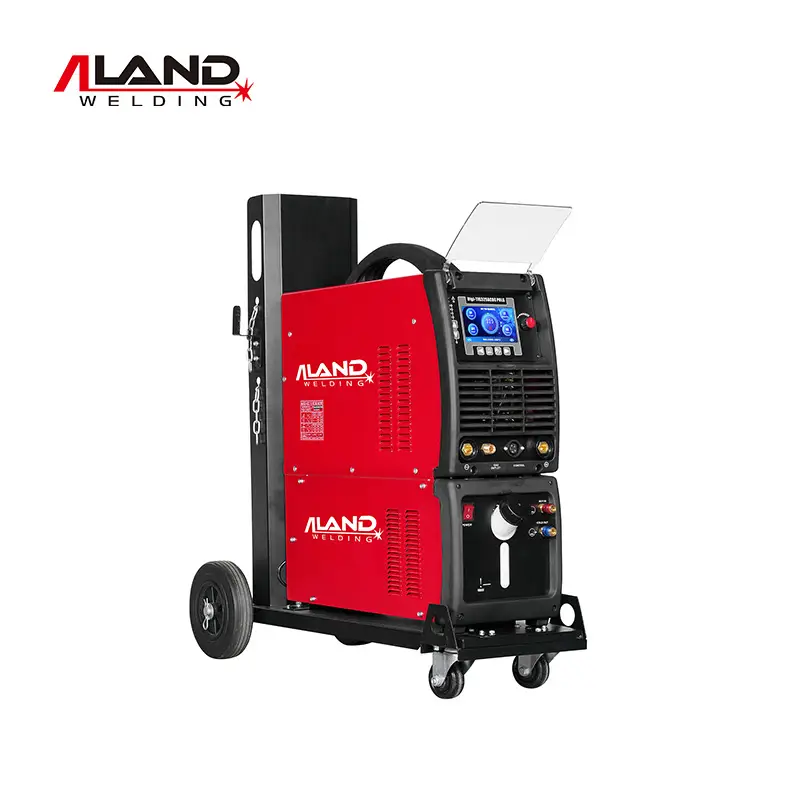

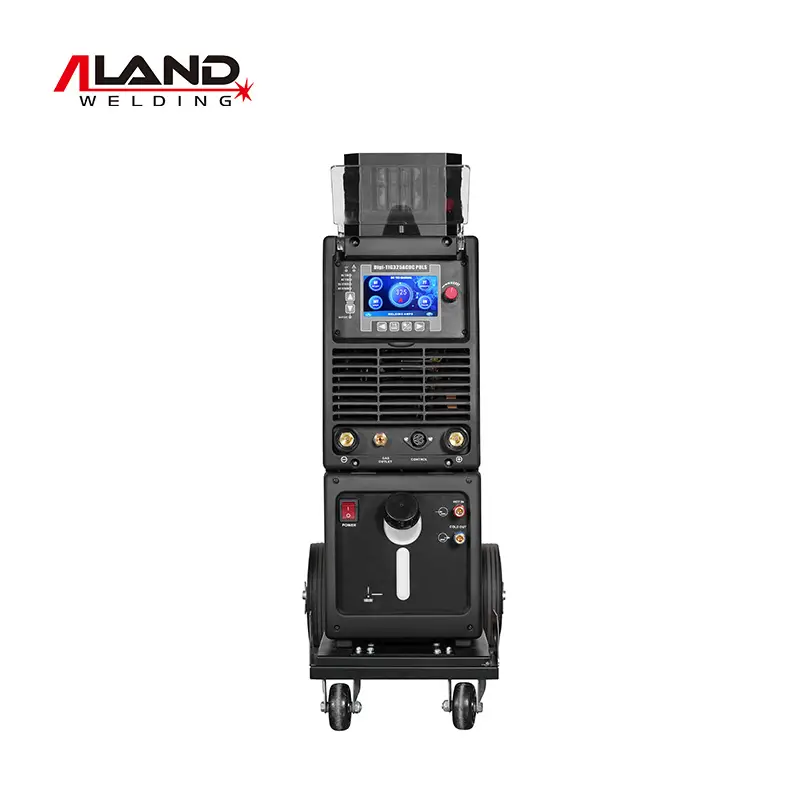

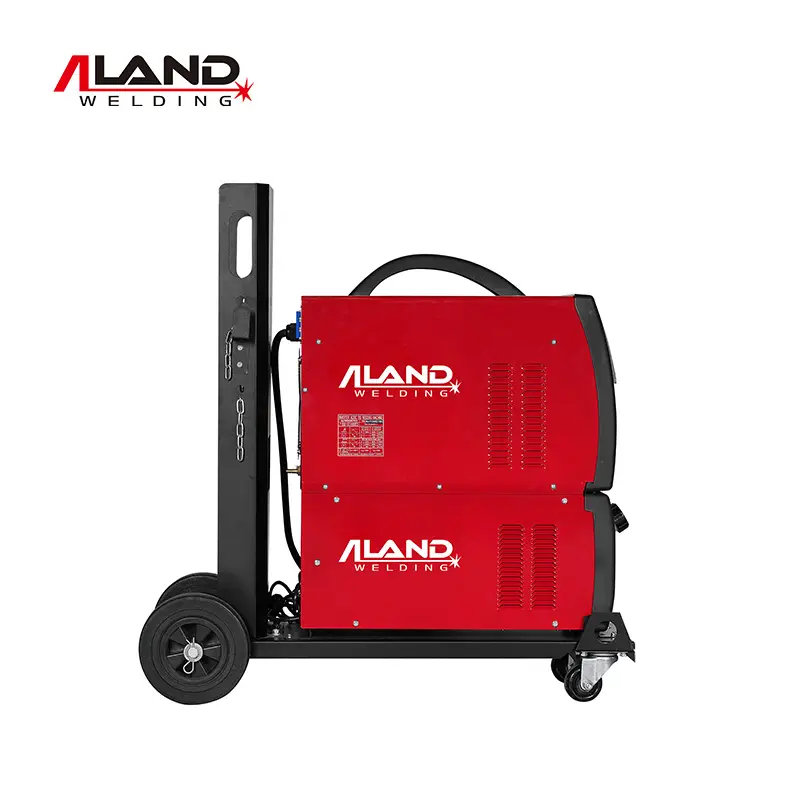

325A AC DC Pulse TIG Welder LCD Display Spot Cold TIG Welding Machine Description:
The 325A AC DC pulse TIG welder with LCD display is designed for high-precision welding of aluminum, stainless steel, and carbon steel. This AC DC TIG welding machine supports pulse, spot, and cold TIG welding functions, allowing better control of heat input and producing clean, high-quality welds, especially on thin materials.
Equipped with an intuitive LCD display control panel, the machine enables easy parameter adjustment and real-time monitoring. The pulse TIG welding machine ensures stable arc performance and efficient operation, making it suitable for metal fabrication, stainless steel processing, automotive repair, and industrial applications.
This professional industrial-grade TIG welding machine adopts advanced IGBT inverter digital technology, integrating AC/DC TIG, Pulse TIG, Spot TIG, Cold TIG, and MMA welding in one compact unit. With a rated output of 325A, it delivers stable arc, precise control, and strong adaptability for both thin-sheet precision work and heavy-duty fabrication.

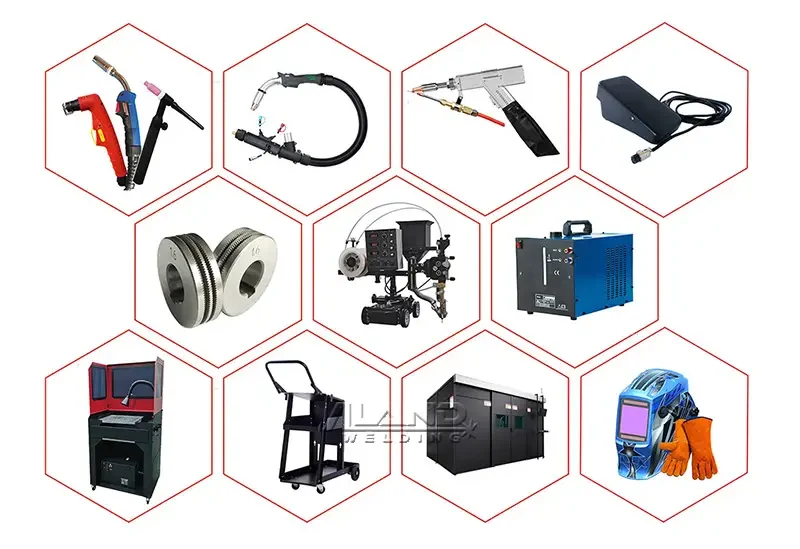

Accessories Includes
TIG Torch 4m
Electrode Holder 500A 3m
Earth Clamp 500A 3m
Gas Hose 2m
Optional
Amps control TIG torch
Foot pedal
Regulator
Water cooler W200

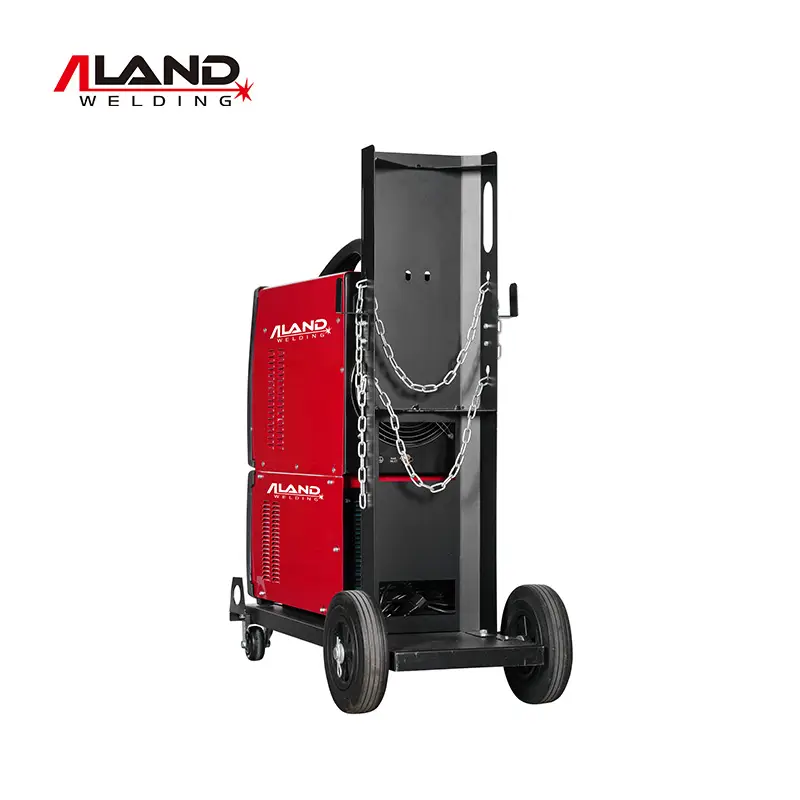

Trolley MC205
325A AC DC Pulse TIG Welder Specification:
| Model | DIGI TIG235ACDCPULS | DIGI TIG325ACDCPULS |
| Power Supply Voltage | 1*230V 50/60Hz | 3*400V 50/60Hz |
| Rate Capacity (KVA) | 6.2 | 10 |
| Rate Input Current(A) | 27 | 14.5 |
| No Load Voltage | 80 | 80 |
| Output current Range | TIG:2(AC:3A)-235A MMA:10-200A | TIG:3(AC:5A)-400A MMA:10-315A |
| Duty Cycle | 60% | 35% |
| Weight | 26kg | 30kg |
| L*W*H (mm) | 560*240*460 | 560*240*460 |
325A Spot TIG Welding Machine Features:
IGBT Digital inverter AC DC Pules TIG and MMA
Lift and HF(or HV) for TIG
32-bit MCU inside

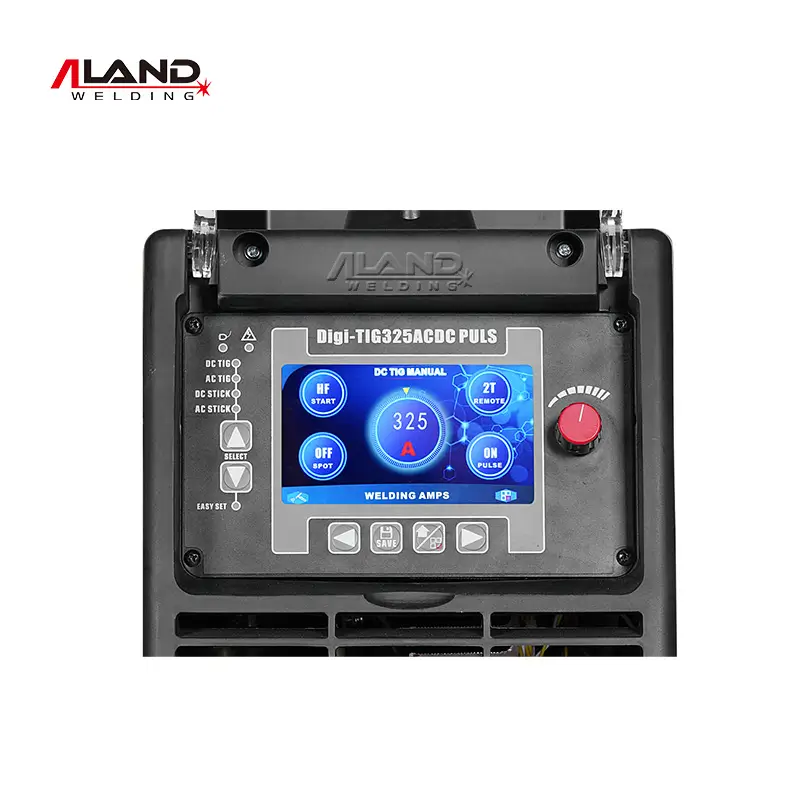

Color LCD screen display
Foot pedal and finger amps remote control
2T/4T function
TIG Cool weld
Pulse frequency up to 999Hz
TIG Spot weld
TIG fast tack
Mix TIG weld
AC frequency can be up to 400Hz
AC amps can go down to 3A, and DC amps can go down to 2A.
Easy get a high-quality weld seam
PFC(Option)
Syngeric(Auto) setting.
Tungsten selection
En/Ep selection
Twin pulse and waveform selection
If you are interested in our products or plan to import the 325A AC DC Pulse TIG Welding Machine and other construction welding products, please feel free to contact us. Looking forward to long-term cooperation with you.
